Screamin’ Eagle Stage IV Kit - 117CI to 131CI

$4,074.95
Part Number: 92500100
Color: Black Highlighted
Only in stock
Only in stock for pickup

Item Sold In Store Only

View Similar Items

Item is sold out but can be back ordered:

Learn More

Or be notified when back in stock.

Item is not available but can be preordered:

Learn More

Or be notified when back in stock.

Notify me when this item is available.
Item will be sold in-store only.
Add to Cart

Item Limit Error

Pay with on orders over $50. Check your purchasing power

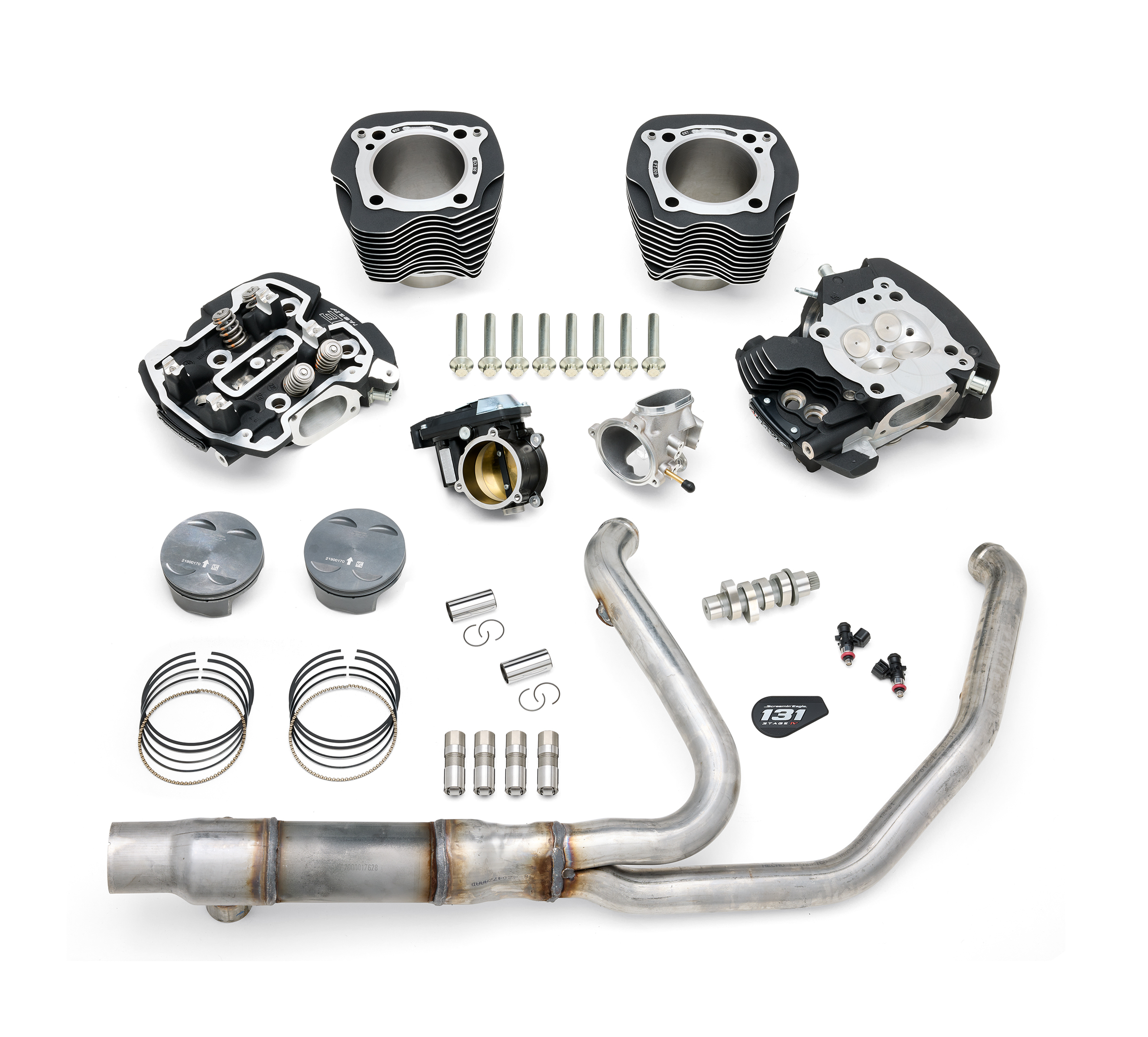

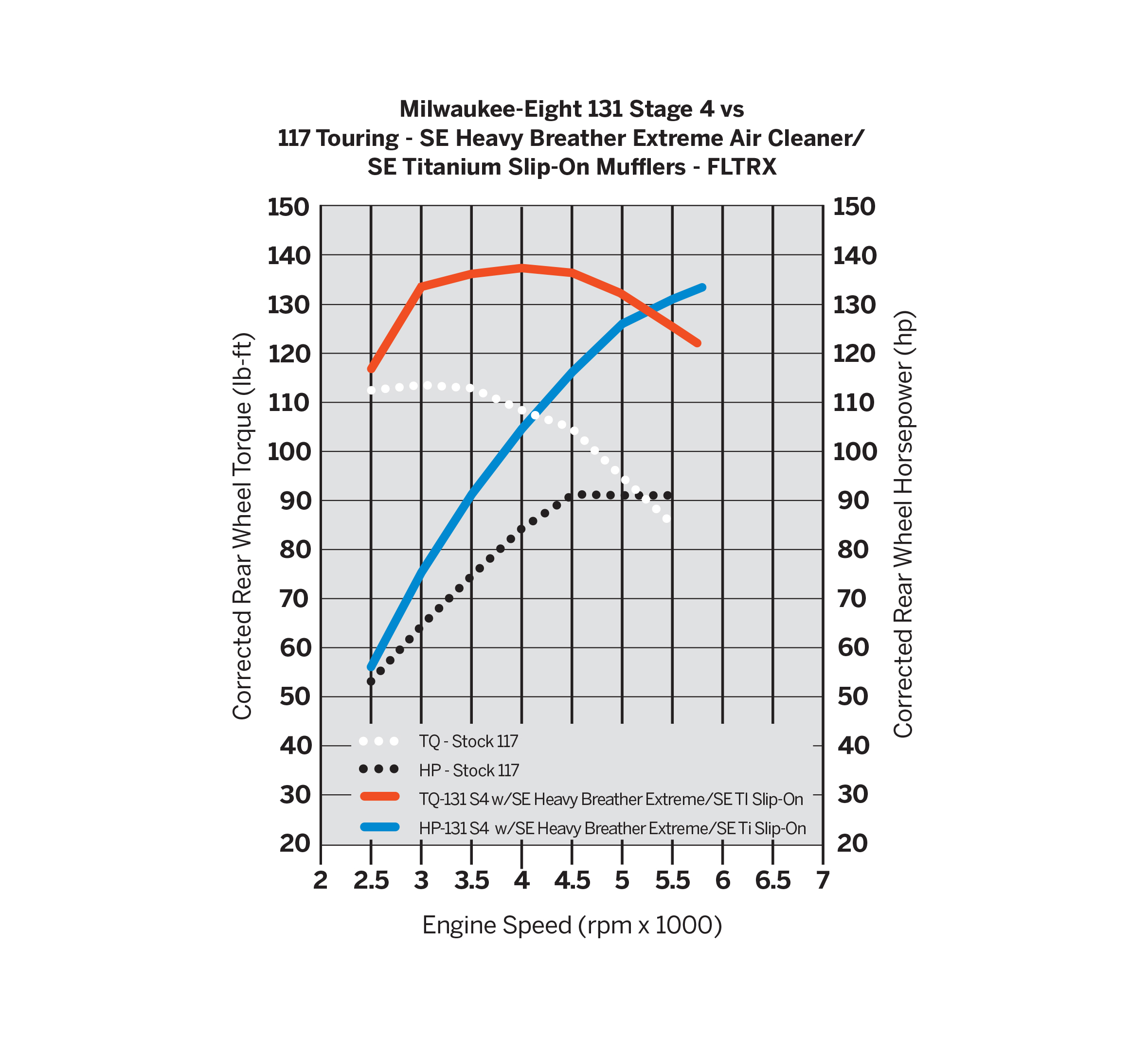

For the rider demanding no-compromise performance. This 117ci to 131ci Stage IV Kit was engineered by the pros at Harley-Davidson to deliver instant arm-stretching torque through the entire rpm range. Made for riders seeking maximum displacement, compression, and flow, it delivers 131 horsepower and 139 ft-lb of torque to the rear wheel! This Stage IV Kit features the finest Screamin’ Eagle® components. Many of these new components were informed by extensive testing by the Harley-Davidson Factory Racing Team for the King of the Baggers racing series. The Stage IV kit consists of: All-new Screamin' Eagle® Extreme CNC-ported cylinder heads, 68mm throttle body and new cast 68mm intake manifold, new SE8-550 high-lift cam and 6.8 g/sec fuel injectors work together to feed the engine large volumes of air and fuel to help maximize power. New forged high-compression pistons and rings are designed to withstand increased combustion forces. Also includes high-performance tappets and new patent-protected 4.31" steel sleeve cylinders. Screamin’ Eagle and Stage IV badging on the cylinder heads and timer cover highlights the powerplant.

...Read More
Description
Details
Rating Snapshot
5
0
4
0
3
0
2
0
1
0
Showing 1-0 of 0
Reviews
Let us know what you think. Write a review
    Showing 1-5 of 10
    Q&A
    Be the first to ask a question. Ask a question
    • Question:
      4/26/2025
      When u buy this kit, does it come with rocker shafts and rockers for the heads? If it is supposed to mine did not. If it isn't supposed to do you reuse the ones from the bike kit is going into. Nobody said I would need these items when ordering.
      Justin - Ohio
      • Answer:
        Hello, This item is sold in dealerships only. Please contact your local HD Dealer where you purchased this item. The Stage IV kit consists of: All-new Screamin' Eagle® Extreme CNC-ported cylinder heads, 68mm throttle body and new cast 68mm intake manifold, new SE8-550 high-lift cam and 6.8 g/sec fuel injectors work together to feed the engine large volumes of air and fuel to help maximize power. New forged high-compression pistons and rings are designed to withstand increased combustion forces. Also includes high-performance tappets and new patent-protected 4.31" steel sleeve cylinders. Screamin’ Eagle and Stage IV badging on the cylinder heads and timer cover highlights the powerplant. read more.
    • Question:
      3/4/2025
      Can the stock inner cam bearing can be used with the SE8-550?
      John - USA
      • Answer:
        Hi John: Due to the nature of your question, please consult with your local dealership. Thanks
        princessv
        Helpful?
    • Question:
      2/9/2025
      What is the difference between 92500100 and 92500144?
      Kevin - Rochester, NY
      • Answer:
        The fitment is the difference. 92500100 only fits '24 FLHX and FLTRX models due to cylinder head changes on '25-later models.
        SE Performance
        Helpful?
    • Question:
      1/24/2025
      What is the difference between 92500100 and 92500400?
      Big Dog - New Jersey
      • Answer:
        Hello Big Dog, Both items are the same. This item is sold in dealerships only. Please check with your HD Dealership for specifics. Thanks
    • Question:
      10/31/2024
      Genuine Harley-Davidson Stage 4 M8 Touring Exhaust Header Pipe 65600177 - what is the difference between stock pipe
      Anton - Russia
      • Answer:
        Less back pressure and stock pipes are 2 into 2 vs 2 into 1. It might have a different sized bung hole for the 02 sensors not to mention bare metal pipe and no cat. That's my 2 cents.
