Round Bar End Mirror - Left

Name: Round Bar End Mirror - Left
Brand: Harley-Davidson
SKU: 56000134A
Price: 124.95 USD
Availability: InStock
Rating: 5 (2 reviews)

$124.95

3.79

See 14 reviews

Part Number: 56000134A

Color: Satin Black

Qty

Members get Free Shipping over $50

Free Returns

Select your store for local inventory details

Ship it

Estimated arrival by: 06/27 - 07/01

Add to Cart

Starting at $12/mo with Affirm.

Add to wish list

Complete the cut-down Café bike look. Thid Bar End Mirror provide a clean, streamlined look when compared to traditional mirrors. Thid round convex mirror plugs into the end of the handlebar to extend beyond the hand grip for an improved field of view on the bike equipped with narrow bars. When equipped with the Bar End Mirror Hand Grips (sold separately), the mirror is simply inserted into the end of the grip and tightened in place.

Description

• Left hand mirror

• Adjustable for maximum rear visibility

• Can be positioned above the bar or in some configurations, below the bar

• When positioned below the bar, the left hand mirror is used on the right side

• Includes hardware required to fit both 7/8" or 1" bars

• Right and left mirrors are sold separately

• Complete the look with the right hand mirror P/N 56000133

Details

Fits stock or accessory handlebars on ’15-later XG (except models equipped with Drag Bar P/N 55800225 or 55800238 and Reach Handlebars P/Ns 55800224), ’02-'17 VRSC^™ (except VRSCF), '96-later XL and XR, and '96-'17 Dyna^® (except FXDLS), ’96-’15 Softail^® (except FLSTNSE, FXSBSE and ’11-’12 FLSTSE) and ’96-’07 Touring models. Installation requires separate purchase of Diamond-Black Hand Grip P/N 56100199 (1") or 56100202 (7/8"). Does not fit with Street Reach Handlebars P/N's 55800224, 56000133A and 56000134A.

Installation Instructions

Adjustable: Yes

Mounting Style: Handlebar-mount

Side of Bike: Left

Sold Separately: Hand Grip 56100199 or 56100202 & Right Hand Mirror

Sold In Units: Each

In the Box: Left hand mirror, all required mounting hardware

WARRANTY: 1 year limited warranty – Go to www.h-d.com/warranty for full details

Notes: Harley-Davidson^® Motor Company cannot test and make specific fitment recommendations concerning every possible mirror and handlebar combination. Therefore, after installing new mirrors or handlebars and before operating the motorcycle, check to ensure that the mirrors provide the operator a clear view to the rear, and do not come into contact with other motorcycle components.

Reviews (14)

3.79 Average Rating

Write a review

Rating Snapshot

Quality

Did Not Meet

Exceeded

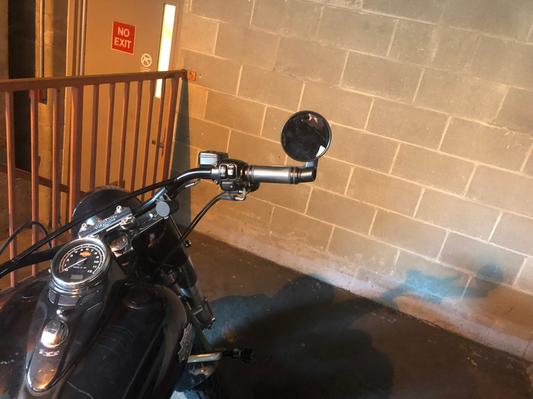

CUSTOMER IMAGES

Showing 1-5 of 14

Sort by:

FEATURED REVIEW

9/14/2023

Item came in damaged with scratches

Featured H-D Dealership H-D Employee Sweepstakes Entry Verified Purchaser Top 10 Contributor Top 25 Contributor Top 50 Contributor Top 100 Contributor Top 250 Contributor

Quality

1
Did Not Meet
Exceeded

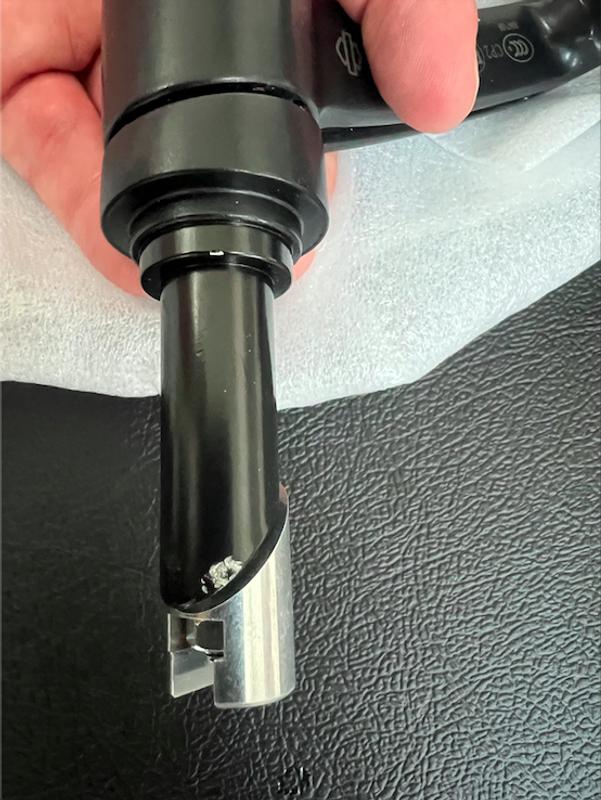

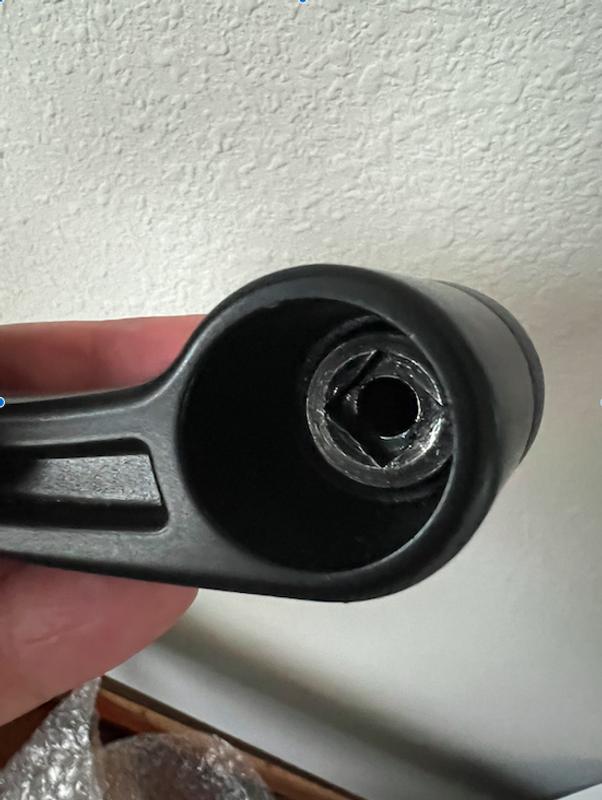

Item came in damaged with scratches and bolt has wear on it. seems like a refurbished or used product when it was supposed to be brand new.. quite dissatisfied with the purchase
rcunha

Add a comment

Helpful? Yes (1)

Report Reported
FEATURED REVIEW

12/7/2022

Highly recommend this product

Featured H-D Dealership H-D Employee Sweepstakes Entry - Verified Purchaser Top 10 Contributor Top 25 Contributor Top 50 Contributor Top 100 Contributor Top 250 Contributor

Loved the mirrors super easy to install and nice durable materials

Ectherth - Nj

Add a comment

Helpful? Yes (0)

Report Reported
FEATURED REVIEW

12/5/2022

looks good

Featured H-D Dealership H-D Employee Sweepstakes Entry - Verified Purchaser Top 10 Contributor Top 25 Contributor Top 50 Contributor Top 100 Contributor Top 250 Contributor

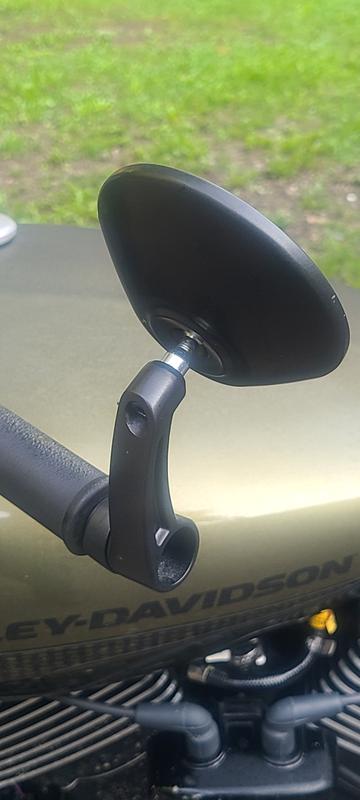

They fit nicely and look pretty good. I wish there was a cap to go in the end to really finish things off. May have to try and find or machine something myself. They are clear when you ride and not all buzzy with vibrations.

Lee T - Damascus or - Motorcycle: 2020 forty eight

Add a comment

Helpful? Yes (0)

Report Reported
FEATURED REVIEW

9/16/2022

Amazing mirrors, impossible to install however

Featured H-D Dealership H-D Employee Sweepstakes Entry Verified Purchaser Top 10 Contributor Top 25 Contributor Top 50 Contributor Top 100 Contributor Top 250 Contributor

The mirrors are simply amazing. Very high quality and they looked great on my bike. The problem: I couldn't get them installed. The hardware included in the package seems to be designed for handlebars with a 1/2 in inner diameter. My bike has a 1in outer diameter and a roughly 7/8in inner diameter. The extra spacer that comes with the mirror is also insufficient. It seems very odd to me so I took them to no less than 5 different HD dealerships in the Chicagoland, and central IL area. Not one of them could figure this out. They just suggested the mirror may have been missing parts. I can't for the life of me understand why such a basic thing would go unnoticed by HD given the otherwise high quality of this part. I also purchased the black diamond bar grips that this set requires. In honestly, the grips are only required because they have the opening to allow for the mirrors to be placed through the handlebar. I really wanted these to work. I even went to Lowes and purchased different plumbing spacers and such in order to try to make the inner bracket "bite" into the interior diameter of the handlebar. Nothing worked. I spent over 8 hours over several days plus the multiple HD dealership shop visits. Technicians would come out and try to make sense of this but just shrugged. A shame. I ended up buyer some other mirrors instead since one of my original HD mirrors broke and I needed to get them replaced after two weeks of trying to make these work. Also the instructions are trash. I work in Product Support for a fortune 100 company and I expect more out of HD for their "do it myself" customers. The saving grace is the mirrors themselves are awesome. Just make sure your handlebar has a 1/2in diameter or your out of luck. read more.

Antonio - Illinois - Motorcycle: Sportster 1200 Custom

Add a comment

Helpful? Yes (2)

Report Reported
FEATURED REVIEW

9/9/2022

As advertised

Featured H-D Dealership H-D Employee Sweepstakes Entry - Verified Purchaser Top 10 Contributor Top 25 Contributor Top 50 Contributor Top 100 Contributor Top 250 Contributor

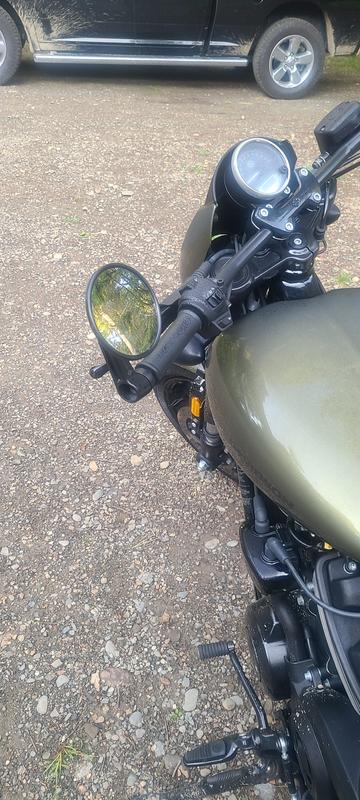

My '17 street rod is hard to find parts for, but this fit as advertised.
Drew - Maine - Motorcycle: Street Rod

Add a comment

Helpful? Yes (0)

Report Reported

of 3

Q&A (3)

Ask a question

Showing 1-3 of 3

Sort by:

Question:

1/24/2024

Hello i have the black diamond grips and would like to add the left and right bar end mirrors. I can only find the product for the left side, and not the right. There is a provided P/N but when searching for it nothing comes up.

Brew - Louisiana

Answer question
- Answer:

  Hi Brew, Unfortunately, the RH side is obsolete. I would recommend working with your local dealer to see if they can locate one.

  hockeydad

  Helpful? Yes (0)

  Report Reported
Question:

1/22/2024

Hello, The right side mirror P/N 56000133 does not work. How can I go about ordering the right side?

Brew - Louisiana

Answer question
- Answer:

  Hi Brew, Unfortunately, the RH side is now obsolete. I would recommend working with your local dealer to try and locate one.

  hockeydad

  Helpful? Yes (0)

  Report Reported
Question:

2/4/2017

What grips do these work with? Will they need to be cut or modified?

Randy883r - NJ

Answer question
- Answer:

  Currently, they only work with the NEW Diamond Black grips that Harley offers for this mirror application. Diamond Black Hand Grips - Bar End Mirrors Part Number 56100199 Hope this helps you!

  BluesCowboy

  Helpful? Yes (0)

  Report Reported
