12 in. Fat Mini-Ape Handlebar

Part Number: 55801327
Color: Gloss Black
Qty
Only in stock
Only in stock for pickup

View Similar Items

Item is sold out but can be back ordered:

Learn More

Or be notified when back in stock.

Item is not available but can be preordered:

Learn More

Or be notified when back in stock.

Notify me when this item is available.
Item will be sold in-store only.
Add to Cart

Item Limit Error

This true 12” mid-rise Ape handlebar is the perfect mix of comfort and style. This bar features a traditional shape that tapers from a narrow base to a wide-open stance, and provides a flatter hand position with slightly less of the turned-in shape that can put stress on your wrists.

...Read More

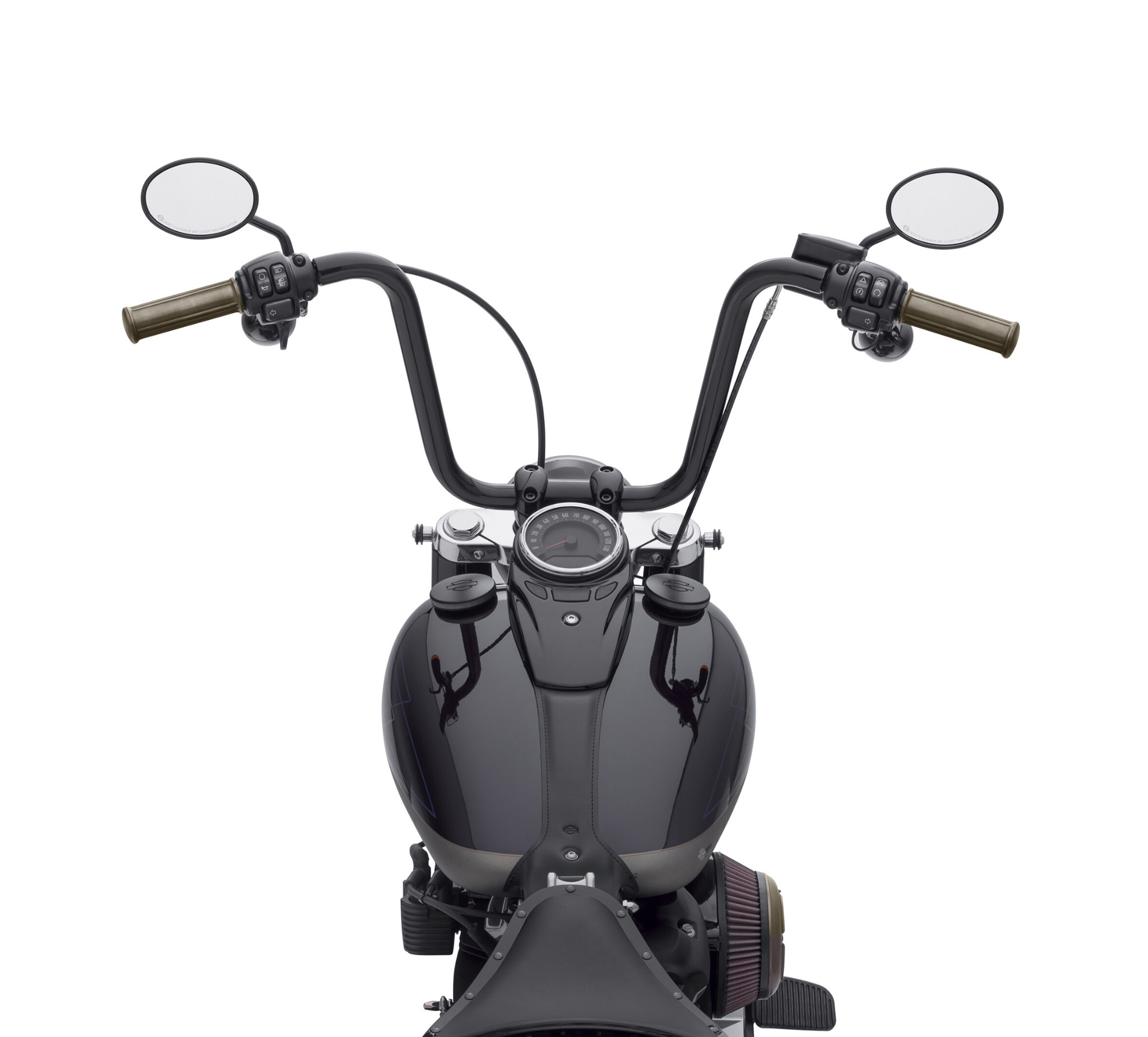

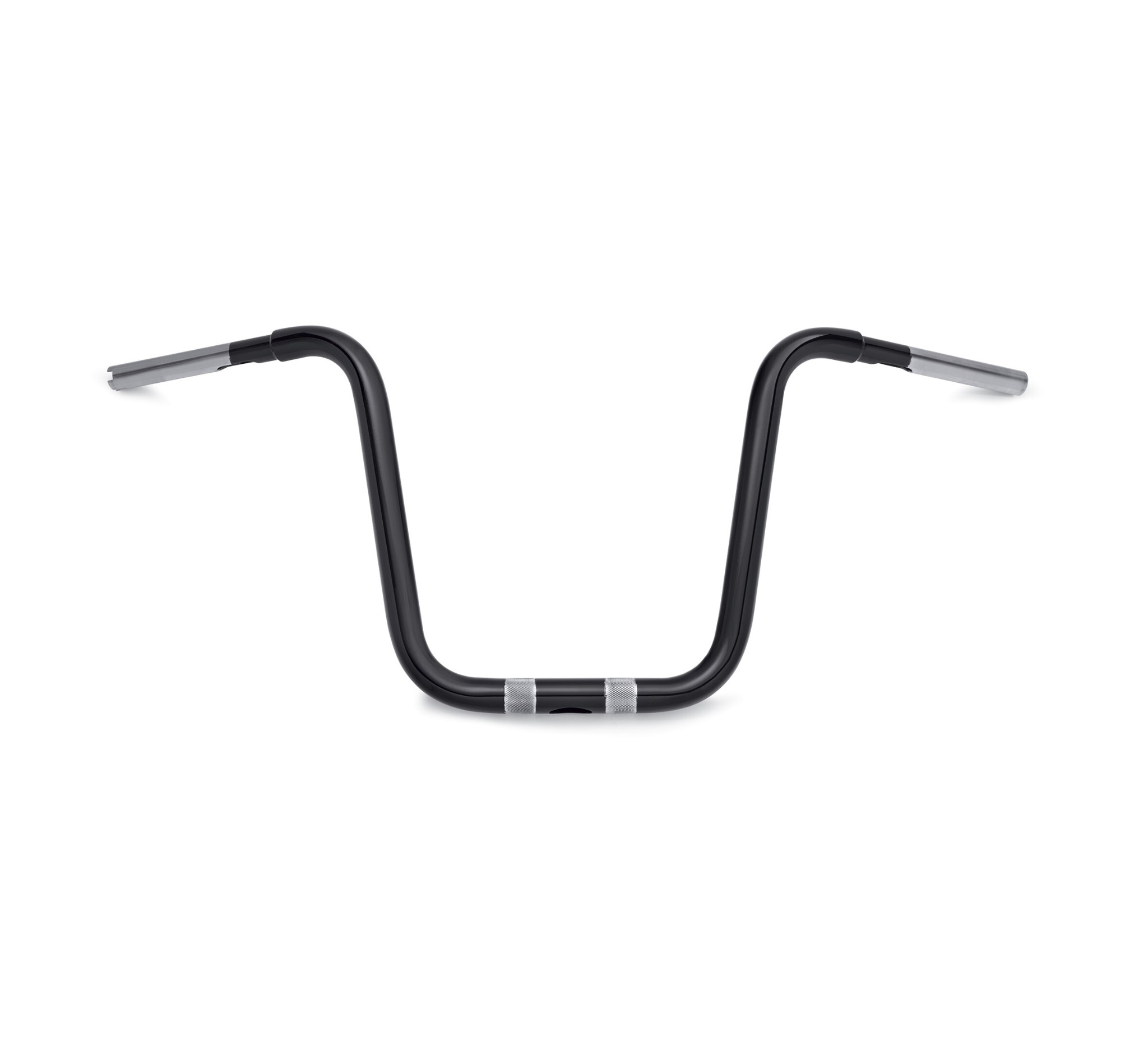

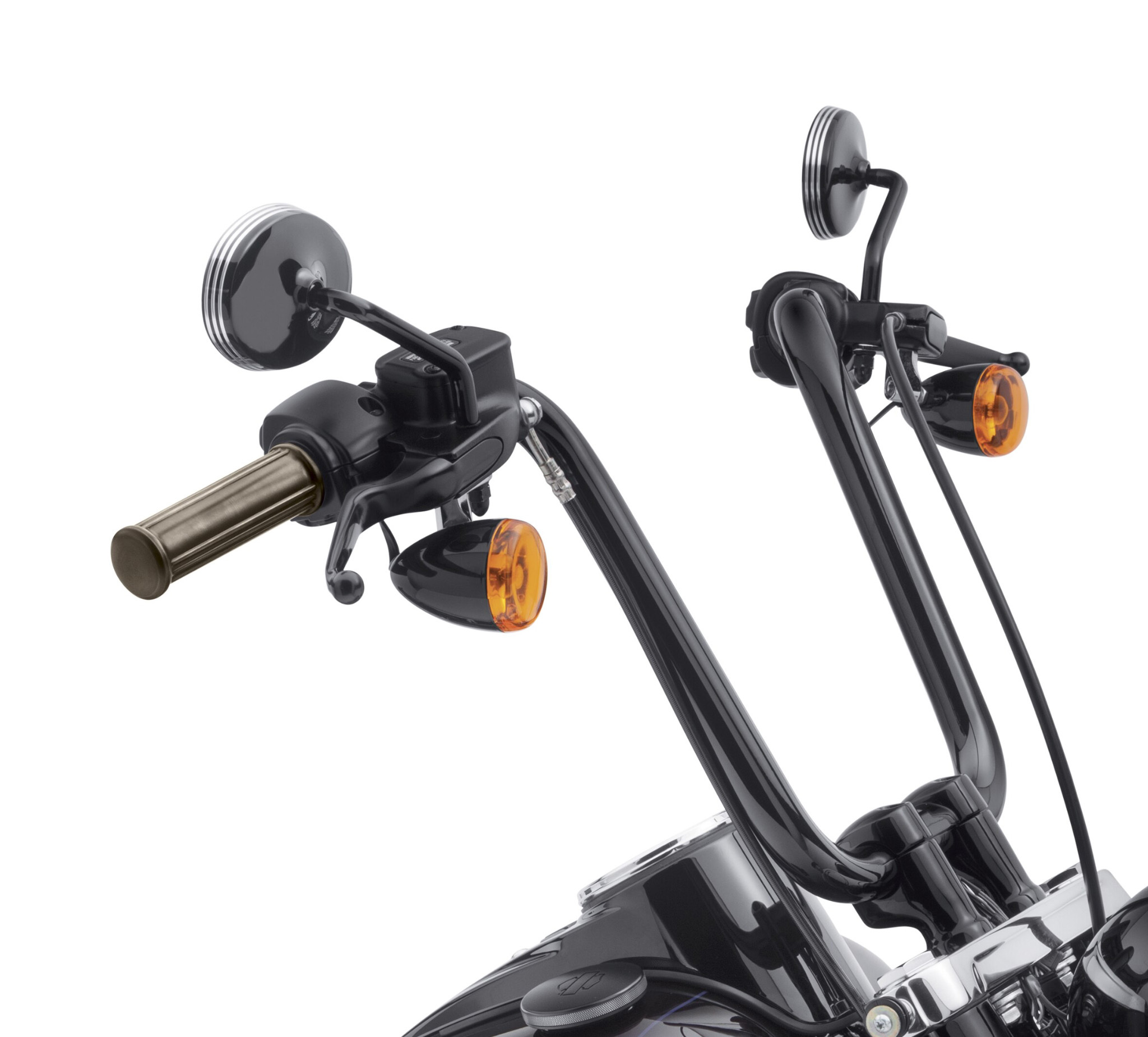

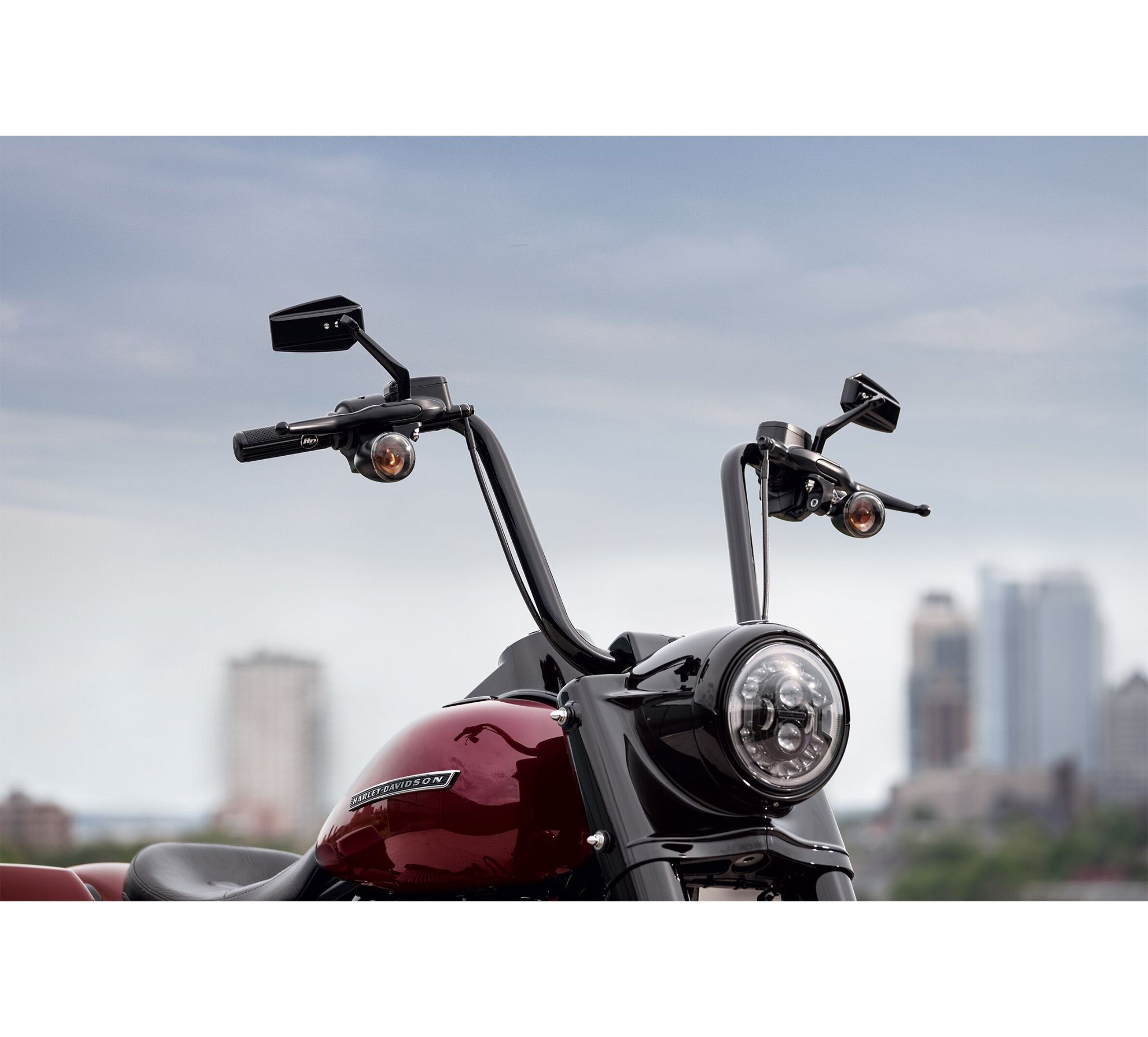

12 in. Fat Mini-Ape Handlebar
This true 12” mid-rise Ape handlebar is the perfect mix of comfort and style. This bar features a traditional shape that tapers from a narrow base to a wide-open stance, and provides a flatter hand position with slightly less of the turned-in shape that can put stress on your wrists.
Gloss Black finish
1.25” diameter fat bar is factory drilled to allow internal wiring
Can be installed in the Original Equipment risers on models factory-equipped with 1.25” handlebars
See Harley-Davidson Handlebar Installation Requirements document for additional components required for installation

Fits ABS enabled '14-later 'FLHR, FLHRC, and FLHRXS models excluding vehicles equipped with 4-point H-D® detachable docking kits. Models originally equipped with 1.0" handlebar will require separate purchase of 1.25" handlebar riser kit. All models require separate purchase of additional installation components.

Base Width: 11.0
Knurl Center-to-Center: 3.54
Diameter: 1.25
Sold Separately: Additional installation components
Sold In Units: Each
Material: Steel
In the Box: Handlebar, aluminum isolators (4), installation instructions
Pullback: 3.69
Rise: 12.48
Tip-to-Tip: 35.44
WARRANTY: 1 year limited warranty – Go to www.h-d.com/warranty for full details
Notes: Installation of some handlebars and risers may require a change in clutch and/or throttle cable and brake lines for some models. Handlebar height is regulated in many locations. Check local laws to ensure your motorcycle meets applicable regulations.
