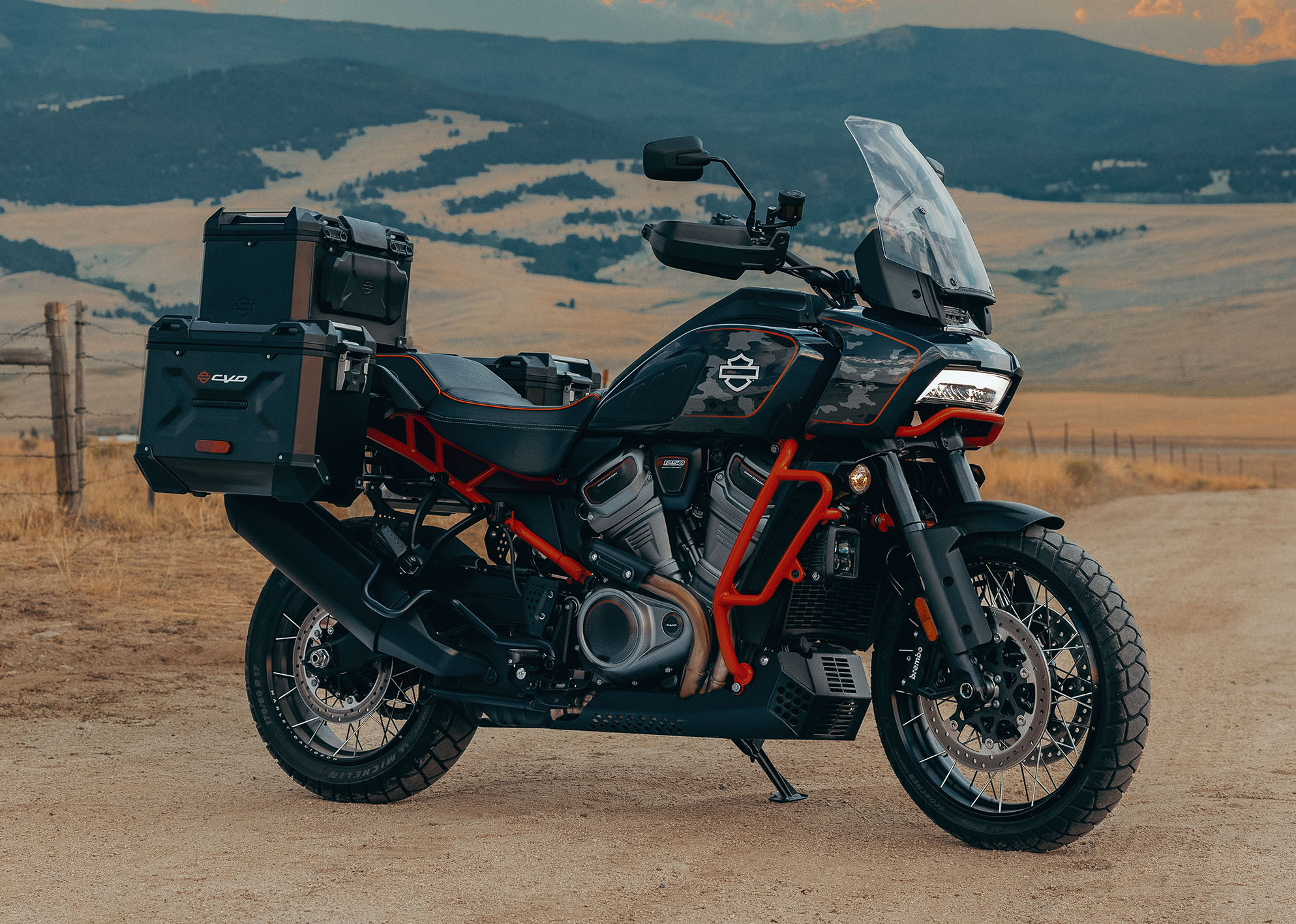

2024 CVO^™ Pan America^™

Starts at €29,995

360 View

2024 CVO^™ Pan America^™

€29,995

Starting Price

Trim:

Black

Colour:

Legendary Orange

Pricing 1

Custom Colour

€29,995

*Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

DESIGNED FOR ADVENTURE

LUGGAGE

Designed in collaboration with SW-MOTECH^™, this rugged aluminum luggage is built to withstand the rigor of hardcore adventure riding.

ALUMINUM TOP CASE

A rugged aluminum and water-tight top case created in collaboration with SW-MOTECH holds up to 38 liters of essentials without compromising ride and handling.

PAINT & FINISHES

The CVO Pan America stands out in Legendary Orange with Raven Metallic and Atlas Silver on the fuel tank and fairing. A stylized “#1” logo adorns the fuel tank, and a small CVO graphic lives on each case side. CVO 25th Anniversary graphics are on top of the outer fairing and the console insert.

At a glance

Fully loaded for highway trips and off-grid rips.

Compare This Bike

Upright riding position
Mid-mount foot controls
Passenger seat
Tall
Saddlebags
Frame mounted fairing
Infotainment
Rider safety enhancements standard

PERFORMANCE

REVOLUTION^™ MAX 1250 ENGINE

A liquid-cooled powertrain delivers 150 horsepower, instant torque, and a surging powerband tuned to maximise rider control.

REVOLUTIONARY SUSPENSION

The semi-active suspension system dynamically adjusts damping based on position, vehicle speed, vertical acceleration, roll angle, throttle, brake inputs, and the selected Ride Mode to get the most from your adventure, wherever it takes you.

ADAPTIVE RIDE HEIGHT

This system not only lowers seat height when stopped but also maintains a constant, optimum suspension sag at speed by continuously monitoring inputs and adjusting preload.

DAYMAKER^™ SIGNATURE ADAPTIVE HEADLAMP

Advanced Daymaker Adaptive Headlamp technology utilises the ABS inertial measurement unit (IMU) to determine the lean angle and automatically project additional light into unlit corners of the road or trail.

SCREAMIN’ EAGLE^™ QUICKSHIFTER

Provides clutchless upshifts and downshifts. Precise shifts are accomplished in an instant, enabling smoother, stress-free control during on- and off-road riding.

INNOVATION

RIDER SAFETY ENHANCEMENTS

Designed to maximise traction during acceleration, deceleration, and braking, the system utilises the latest chassis control, electronic brake control, and powertrain technology to enhance rider confidence while riding on any type of road condition.

RIDE MODES

Choose from five pre-programmed Ride Modes (Sport, Road, Rain, Off-Road, and Off-Road Plus) or create your own custom mode, tuning your bike with a specific combination of power delivery, engine braking, Cornering Enhanced Antilock Braking System (C-ABS), and Cornering Enhanced Traction Control System (C-TCS) settings.

INFOTAINMENT

The CVO Pan America features a 173 mm color TFT touchscreen that displays all instrumentation and infotainment functions and seamlessly pairs with the rider’s Bluetooth-equipped mobile device.

Detailed Specs

Dimensions

Length

2,345 mm

Seat Height, Unladen

low/high seat position; 830 mm/855 mm

Ground Clearance

180 mm

Rake

Trail

108 mm

Wheelbase

1,585 mm

Tire, Type

Michelin^™ Scorcher “Adventure”, Radial

Tires, Front Specification

120/70R19 60V

Tires, Rear Specification

170/60R17 72V

Fuel Capacity

21.2 l

Oil Capacity (w/filter)

4.5 l

Weight, As Shipped

284 kg

Weight, In Running Order

299 kg

Luggage Capacity -Volume

0.12 m³

Engine

Engine 2

Revolution^™ Max 1250

Bore

105 mm

Stroke

72.3 mm

Displacement

1,252 cc

Compression Ratio

13.0:1

Fuel System

Electronic Sequential Port Fuel Injection (ESPFI)

Exhaust

2-into-1-into-1; catalyst in header

Performance

Engine Torque Testing Method

EC 134/2014

Engine Torque 3

128 Nm

Engine Torque (rpm)

6750

Horsepower

150 HP / 112 kW @ 8750 rpm

Lean Angle, Right (deg.)

Lean Angle, Left (deg.)

Fuel Economy Testing Method

EU 134/2014

Fuel Economy

5.6 l/100 km

CO₂ Emissions Testing Method

EU 134/2014

CO₂ Emissions

134 g/km CO²

Drive Train

Primary Drive

Gear, 49/89 ratio

Gear Ratios (overall) 1st

13.11

Gear Ratios (overall) 2nd

9.687

Gear Ratios (overall) 3rd

7.509

Gear Ratios (overall) 4th

6.057

Gear Ratios (overall) 5th

5.08

Gear Ratios (overall) 6th

4.436

Chassis

Front Fork

47 mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps

Rear Shocks

Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping and Adaptive Ride Height (ARH)

Wheels, Front Type 4

Annodized aluminum tubeless laced

Wheels, Rear Type 4

Annodized aluminum tubeless laced

Brakes, Caliper Type

Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper

Brakes, Rotor Type

Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor

Electric

Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights

Daymaker Adaptive LED Headlamp with 6-segment LED banking lamp; All LED Tail/Stop lamp with signature tail lighting; LED bullet turn signals

Gauges

6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)

Infotainment

Screen Size

173 mm

Type

Color TFT w/ Touch

Headset Specifications (if equipped)

Bluetooth

Languages

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

Hands-free Mobile Phone - via Bluetooth

Standard

Voice Recognition Languages: Phone functions only

Phone dependent

Voice Recognition Languages: Tuner/Media/Navigation

Phone dependent

Rider/Passenger Intercom

Headset function only

Vehicle Information Screen (Air temperature, oil pressure and EITMS)

TPMS, Engine temp, Battery Voltage, Ambient Air Temp

Text-to-Speech (TTS) Languages

Phone dependent

USB

Charging and Instrument update, USB-C, 5V, 3A

Bluetooth

Phone/Media Supported

Rider Safety Enhancements

Anti-lock Brake System (ABS)

Included

Electronic Linked Braking (ELB)

Included

Traction Control System (TCS)

Included

Drag-torque Slip Control System (DSCS)

Included

Vehicle Hold Control (VHC)

Included

Tire Pressure Monitoring System (TPMS)

Included

Wheel Lift Mitigation

Included

Cornering Enhanced Anti-lock Brake System (C-ABS)

Included

Cornering Enhanced Electronic Linked Braking (C-ELB)

Included

Cornering Enhanced Traction Control System (C-TCS)

Included

Cornering Drag-Torque Slip Control System (C-DSCS)

Included

Enhanced Lift Mitigation

Included
