Ready to Ride? Let us sweeten the deal. See Available Offers.
360 View

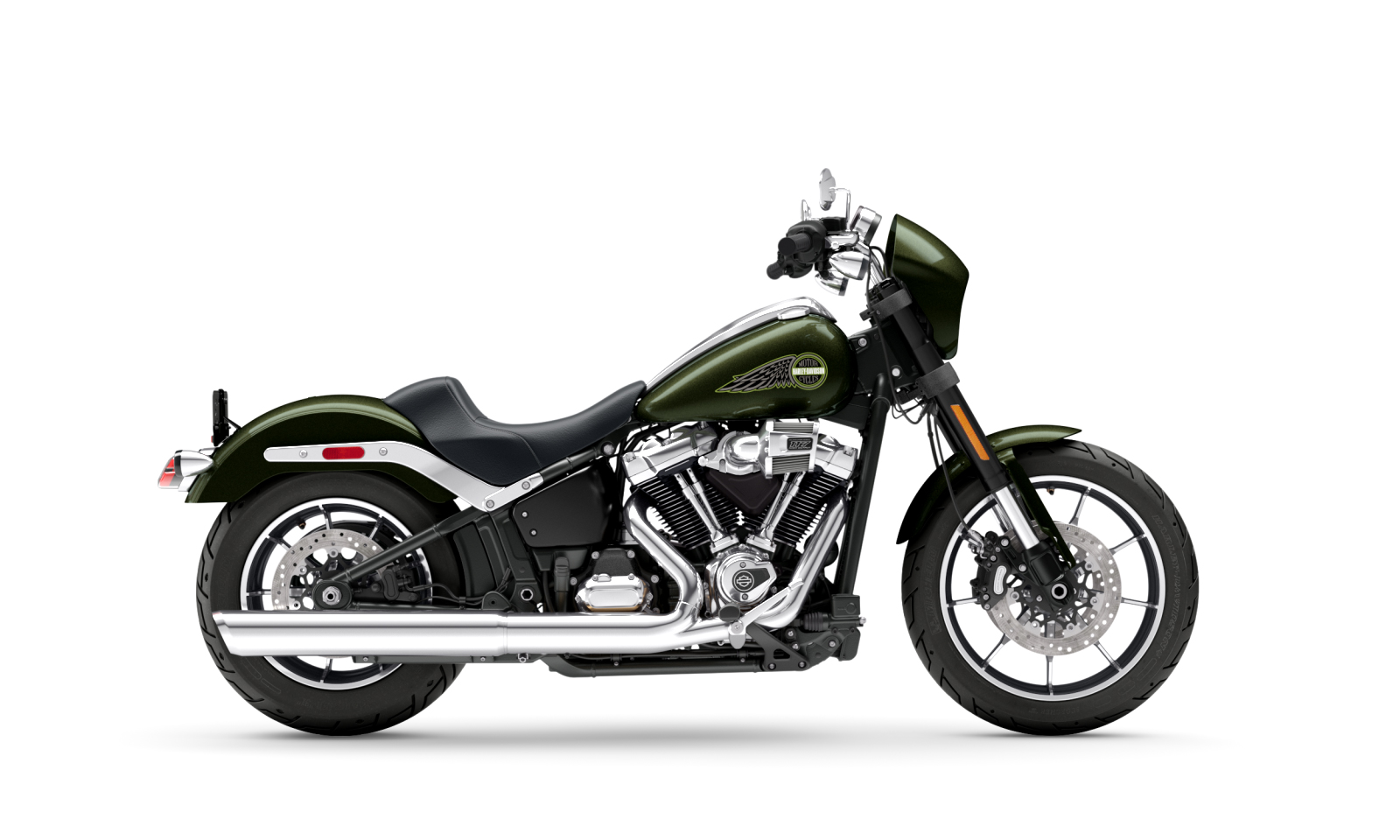

2024 Low Rider S

$25,399

Starting Price

Trim:
Colour:
Base Colour
$25,399
Vivid Black
+ $450
Premium Colour
+ $650
Premium Plus Colour
+ $800
ABS Option
Standard
Security Option
Standard
Cruise Control Option
Standard
Transport
+ $850
*Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
At a glance

A blacked-out, factory-custom performance cruiser, the Harley-Davidson Low Rider S has West Coast style and Milwaukee muscle.

  • Upright riding position
  • Mid-mount foot controls
  • Screen

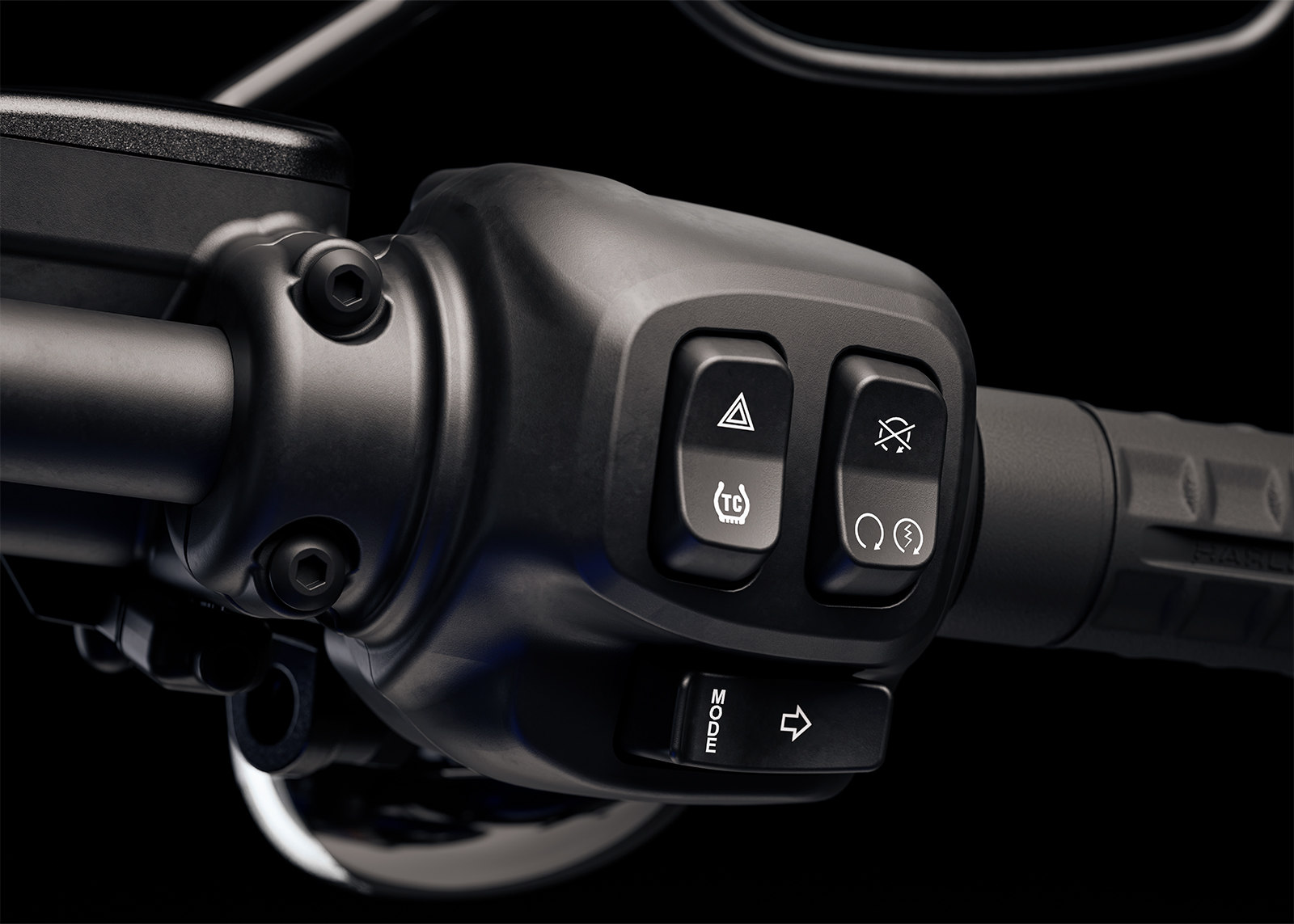

  • Rider safety enhancements standard
Detailed Specs
Length
2,365 mm
Seat Height, Unladen
710 mm
Ground Clearance
145 mm
Rake
28
Trail
145 mm
Wheelbase
1,615 mm
Tire, Type
Michelin Scorcher 31, front and rear
Tires, Front Specification
110/90B19,62H,BW
Tires, Rear Specification
180/70B16,77H,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, As Shipped
295 kg
Weight, In Running Order
308 kg

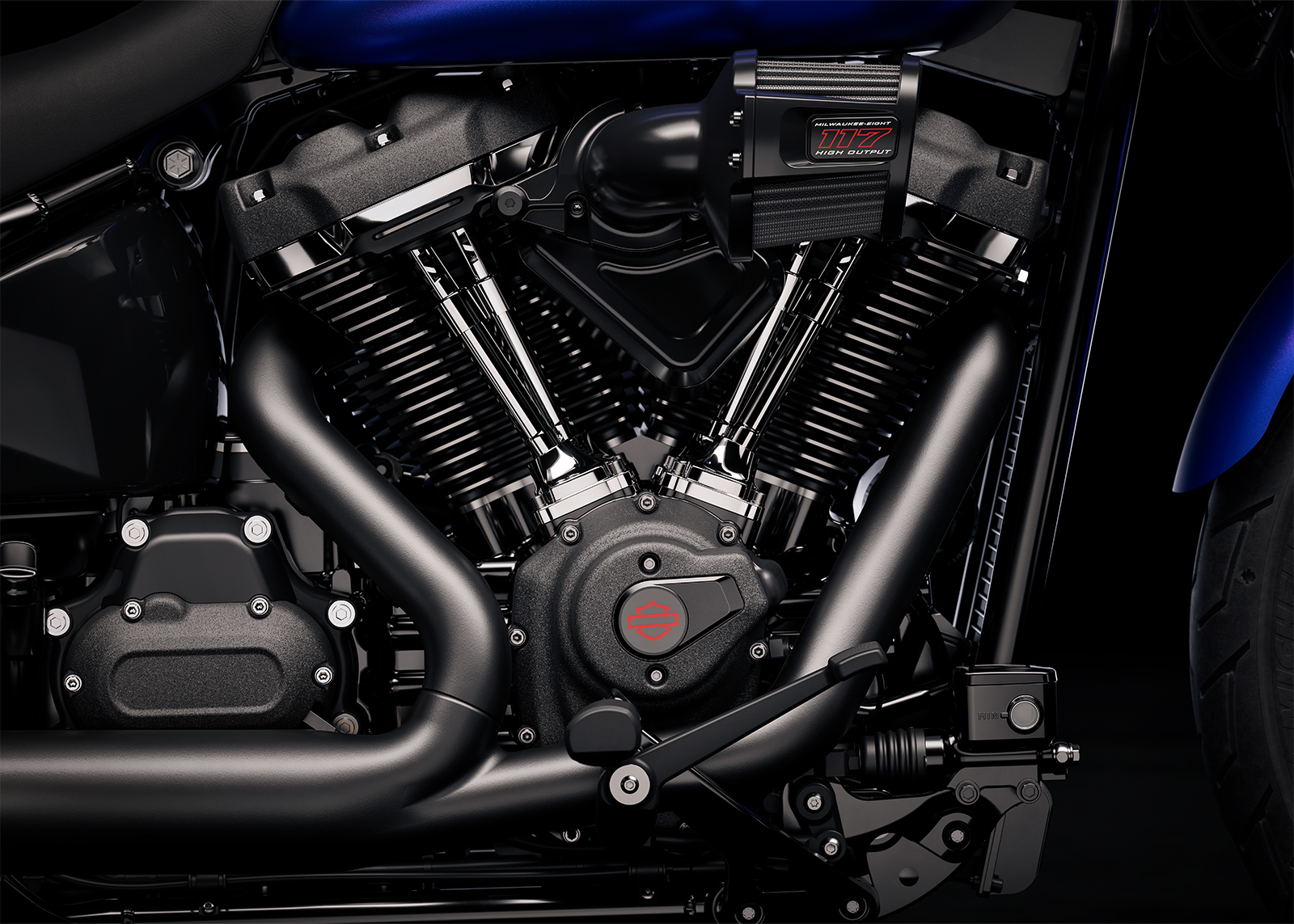

Engine 2
Milwaukee-Eight 117
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.2:1
Fuel System 3
Electronic Sequential Port Fuel Injection (ESPFI)

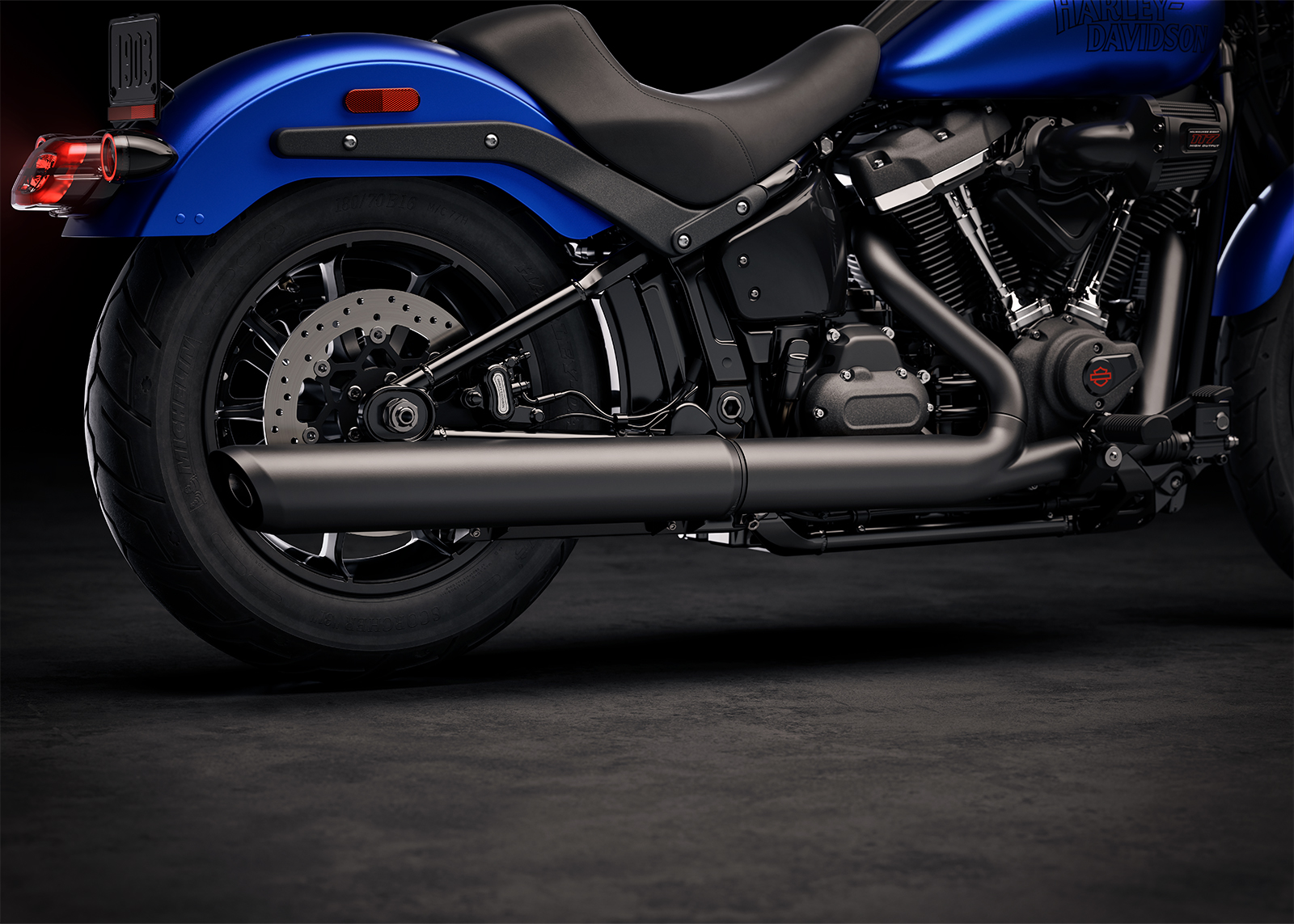

Exhaust
2-into-2 offset shotgun; catalyst in muffler
Engine Torque Testing Method
J1349
Engine Torque 3
169 Nm
Engine Torque (rpm)
3,500
Horsepower
103 HP / 77 kW @ 4750 rpm
Lean Angle, Right (deg.)
31.3
Lean Angle, Left (deg.)
31.3
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy 7
5 l/100 km
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Front Fork
Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Rear Shocks
Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Wheels, Front Type 4
Dark bronze, Radiate cast aluminum wheel
Wheels, Rear Type 4
Dark bronze, Radiate cast aluminum wheel
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear black, Split 7-spoke floating rotors
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
All LED, low beam, high beam and signature position lamp; LED Zeppelin tail lamp; Incandescent bullet turn signals
Gauges
4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
Anti-lock Brake System (ABS)
Included
Traction Control System (TCS)
Included
