2024 Harley-Davidson X™ 500
Starts at $11,495 1
Test Ride Financing Register Interest Download Brochure
360 View

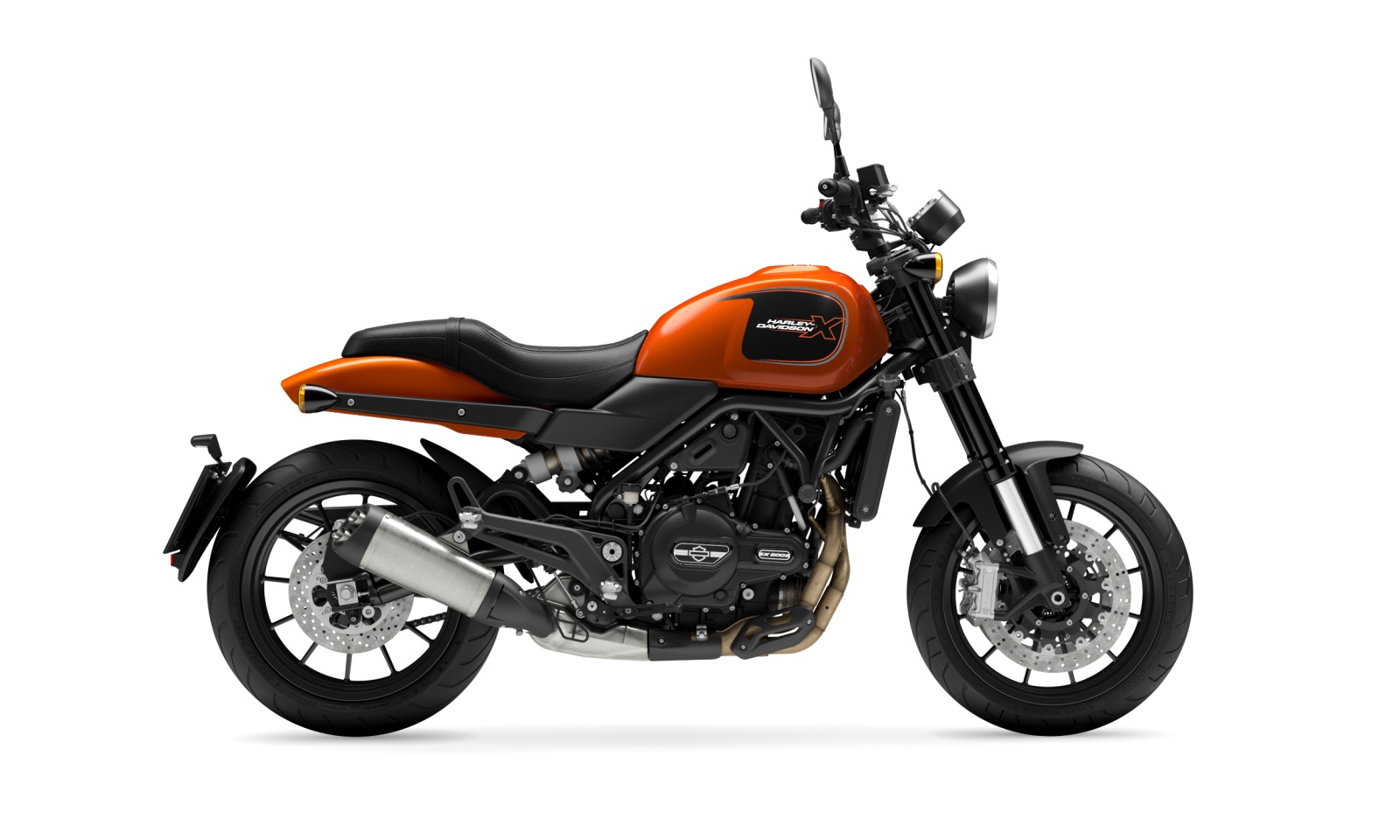

2024 Harley-Davidson X™ 500

$11,495 1

Starting Price

Trim:
Colour:
Estimate payments
Colour
$11,495
Estimate payments
Test Ride Financing Register Interest Download Brochure
*Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Key Features

Engine

Rugged and reliable 500cc powertrain, liquid cooled for consistent and optimal performance in all riding situations.

Seat

Seat width and pad thickness are designed to enhance comfort on longer rides.

American Roadster Styling

Inspired by design cues from Harley-Davidson Sportster™ models

Real-world street-riding performance

Lightweight and agile, with an engine tuned for strong mid-range torque

Riding ergonomics

Mid foot controls and a mid-rise handlebar puts the rider in a centered, comfortable posture on the bike.

Sound of Pleasure

2-into-1 exhaust designed to produce a pleasing low-frequency tone.

At a glance

Iconic Harley-Davidson roadster styling in a lightweight and agile package

  • Upright riding position
  • Mid-mount foot controls
  • Passenger seat
  • Rider safety enhancements standard
Detailed Specs
Length
2,135 mm
Seat Height, Unladen
820 mm
Ground Clearance
153 mm
Rake
24.5
Trail
100.4 mm
Wheelbase
1,485 mm
Tyres, Type
Maxxis Supermaxx ST
Tyres, Front Specification
120/70-ZR17/58W
Tyres, Rear Specification
160/60-ZR17/69W
Fuel Capacity
13.1 l
Oil Capacity (w/filter)
3.2 l
Weight, As Shipped
199 kg
Weight, In Running Order
208 kg
Engine 2
Liquid-cooled, Parallel-Twin, 500cc
Bore
69 mm
Stroke
66.8 mm
Displacement
500 cc
Compression Ratio
11.5:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2 into 1 short single, 3 catalyst
Engine Torque Testing Method
GB/T20076-2006, GB/T5363-2008
Engine Torque 3
46 Nm
Engine Torque (rpm)
6000
Horsepower
47 HP / 35 kW @ 8500 rpm
Lean Angle, Right (deg.)
46.9
Lean Angle, Left (deg.)
49.5
Fuel Economy Testing Method
WMTC
Fuel Economy
4.85 l/100 km
CO2 Emissions Testing Method
WMTC
CO2 Emissions
112 g/km CO2
Primary Drive
Chain, 74/38
Gear Ratios (overall) 1st
2.85
Gear Ratios (overall) 2nd
1.95
Gear Ratios (overall) 3rd
1.56
Gear Ratios (overall) 4th
1.33
Gear Ratios (overall) 5th
1.19
Gear Ratios (overall) 6th
1.08
Front Fork
50mm upside down rebound adjustable
Rear Shocks
Oil and gas separation type, rebound damping adjustable, preload adjustable shock absorber
Wheels, Front Type 4
Cast aluminium
Wheels, Rear Type 4
Cast aluminium
Brakes, Caliper Type
Front floating, rear solid
Brakes, Rotor Type
4-piston fixed front and 1-piston floating rear
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
All LED, low beam, high beam and signature position lamp. All LED Tail/Stop, front signal lights and rear turn signals.
Gauges
Combined electronic instrument stepper motor indicating vehicle speed, digital indicates rpm, hour, total trip, two trips (A + B), km/mile indication
