Starting at
$44,199 MSRP
Key Features
MILWAUKEE-EIGHT™ 114 ENGINE
Loads of torque for on-demand power you can feel with each twist of the throttle, accompanied by that evocative H-D sound.

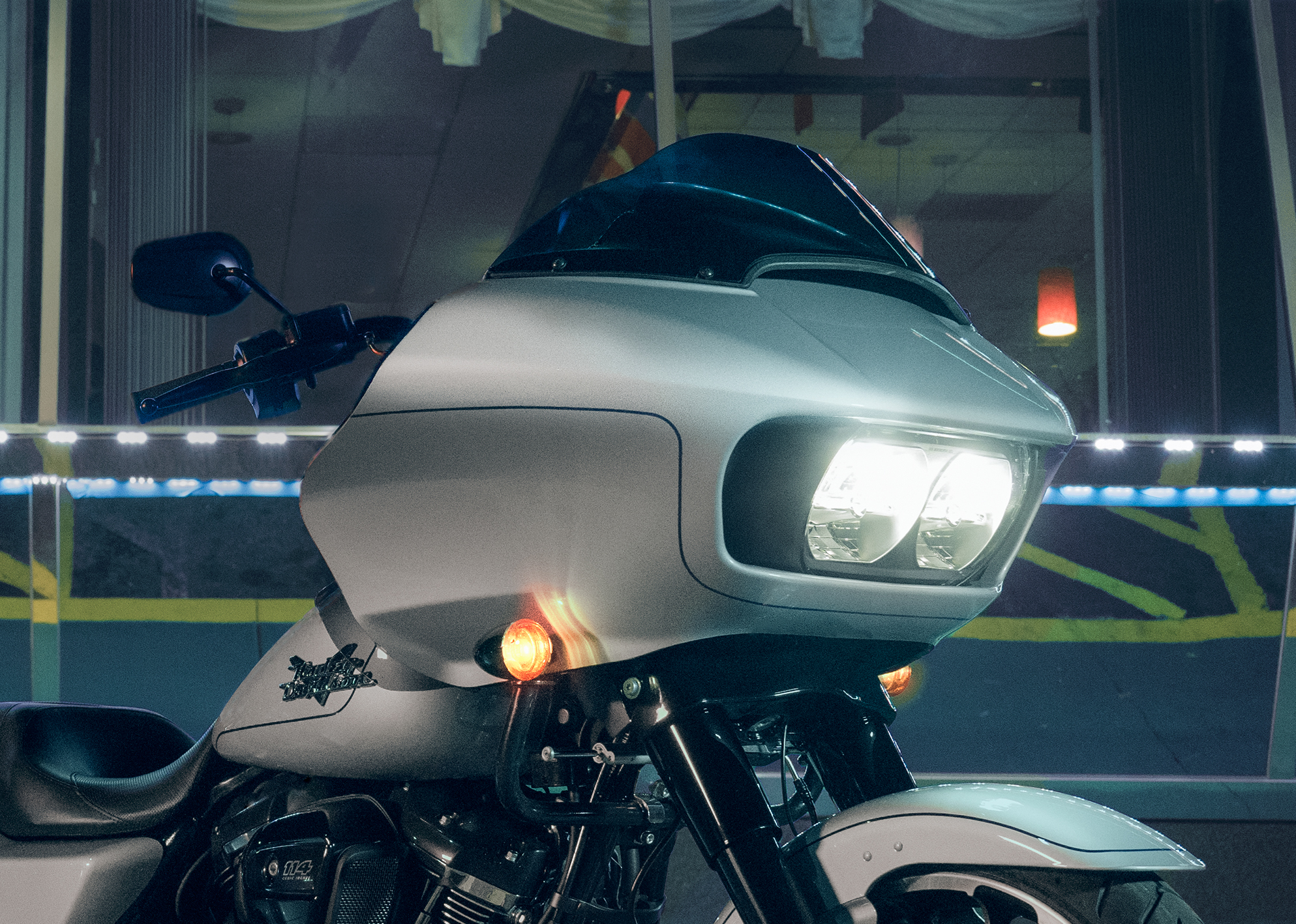

FAIRING
The frame-mounted sharknose fairing features triple split-stream vents that reduce helmet buffeting at highway speeds.
WEATHER-PROOF STORAGE
Carry more on every journey with a rear trunk, which has a top-mounted door for easy loading and unloading.
INFOTAINMENT SYSTEM
An evolved interface experience that offers a contemporary look, feel, and function, with exceptional durability and features designed specifically for motorcycling.
GLOSS BLACK WHEELS
Big, bold, and beautiful 483mm front wheel and 457mm rear wheel.
Technical Specifications
Length
2,615 mm
Seat Height, Unladen
700 mm
Ground Clearance
125 mm
Rake
26
Trail
101 mm
Wheelbase
1,670 mm
Tire, Type
Dunlop™ Harley-Davidson Series, bias blackwall front and radial blackwall rear
Tires, Front Specification
MT 130/60B19 M/C 61H
Tires, Rear Specification
P215/45R18
Fuel Capacity
22.7 l
Oil Capacity (w/filter)
4.7 l
Weight, As Shipped
510 kg
Weight, In Running Order
528 kg
Luggage Capacity -Volume
0.06 m3
Engine
Milwaukee-Eight™ 114
Bore
102 mm
Stroke
114.3 mm
Displacement
1,868 cc
Compression Ratio
10.5:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
Shorty slash down-style chrome finish mufflers
Engine Torque Testing Method
J1349
Engine Torque
162 Nm
Engine Torque (rpm)
2,750
Horsepower
90 HP / 67 kW @ 4750 rpm
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy
5.5 l/100 km
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
10.534
Gear Ratios (overall) 2nd
7.302
Gear Ratios (overall) 3rd
5.423
Gear Ratios (overall) 4th
4.392
Gear Ratios (overall) 5th
3.741
Gear Ratios (overall) 6th
3.157
Front Fork
49 mm dual bending valve
Rear Shocks
Hand-adjustable emulsion rear suspension
Wheels, Front Type
Cast aluminum
Wheels, Rear Type
Cast aluminum
Brakes, Caliper Type
Front: 32 mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
Brakes, Rotor Type
Dual floating rotors (front), fixed rotor (rear)
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; Incandescent tail/stop, front signal lights and rear turn signals
Gauges
Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
Infotainment system
Boom!™ Box GTS
Screen Size
165 mm
Type
Full Color TFT
Watts Per Channel
25
Speakers
2
Speaker Size
5.25 inch standard
Headset Specifications (if equipped)
5.25 inch standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
Standard
Text-to-Speech (TTS) Languages
Phone dependent
USB
USB/MTP/iPod/iPhone
Bluetooth
Phone/Media Supported
Anti-lock Brake System (ABS)
Included
Electronic Linked Braking (ELB)
Included
Traction Control System (TCS)
Included
Drag-torque Slip Control System (DSCS)
Included
Tire Pressure Monitoring System (TPMS)
Included
Cornering Enhanced Anti-lock Brake System (C-ABS)
Included
Cornering Enhanced Electronic Linked Braking (C-ELB)
Included
Cornering Enhanced Traction Control System (C-TCS)
Included
