2024 Low Rider™ S
Test Ride Financing Pricing Enquiry Download Catalog Register Interest
360 View

2024 Low Rider™ S

Trim:
Colour:
See your local dealer for pricing information.
Test Ride Financing Pricing Enquiry Download Catalog Register Interest
*Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Key Features

MILWAUKEE-EIGHT™117 ENGINE

High-performance engine with oil and air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson powertrain.

ELECTRONIC CRUISE CONTROL

Your Low Rider S will save you from speeding so you can enjoy the view and embrace true riding bliss.

SPEEDOMETER

Tucked behind the front fairing is a handlebar-mounted digital speedometer that is easy to view on the roll.

HANDLEBARS

Moto handlebar mounted on risers puts the rider in an aggressive posture on the bike.

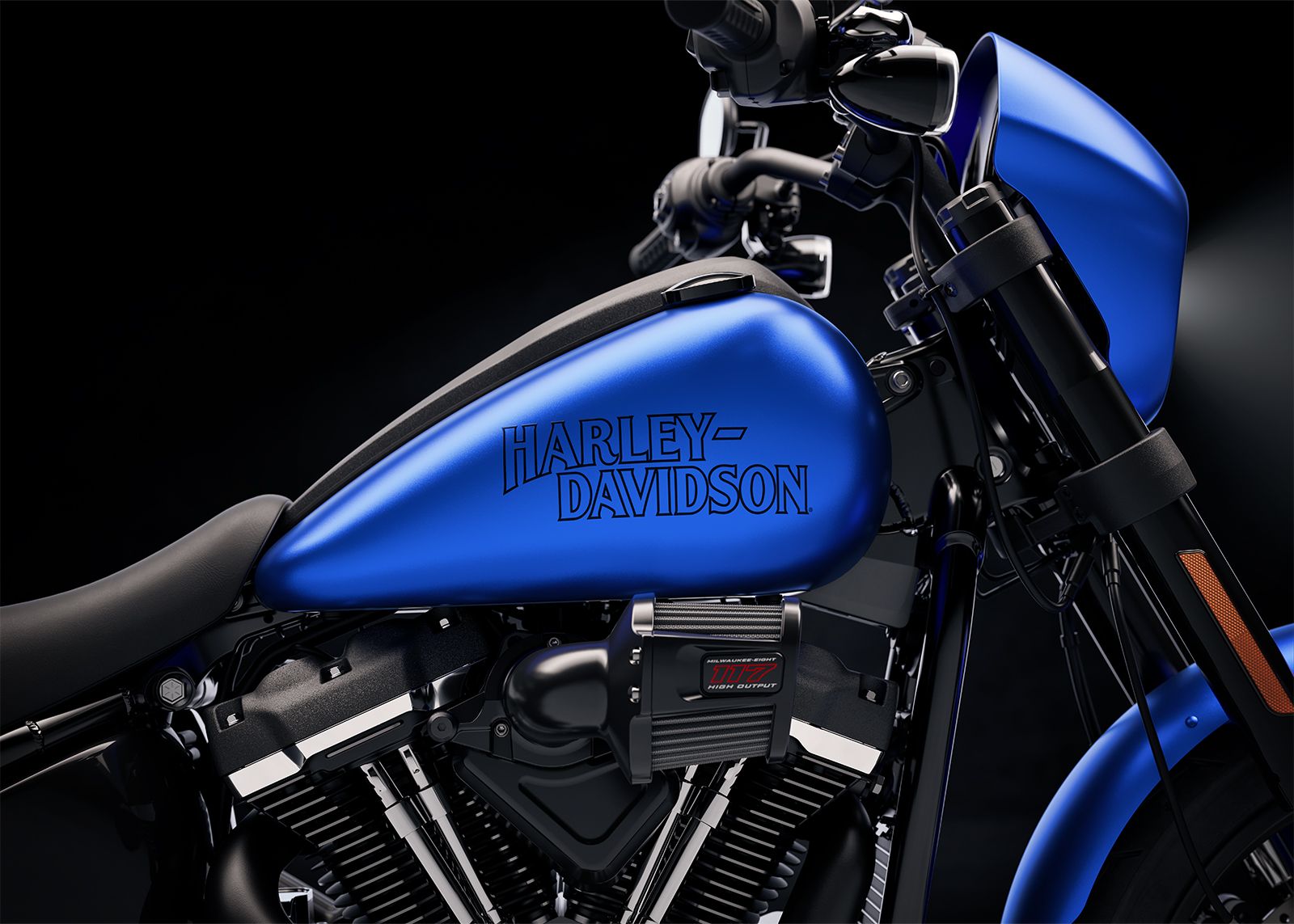

TANK STYLING

The tank features an FXLRS badge cover and a dropped “H” logo, first seen on early H-D race bikes.

At a glance

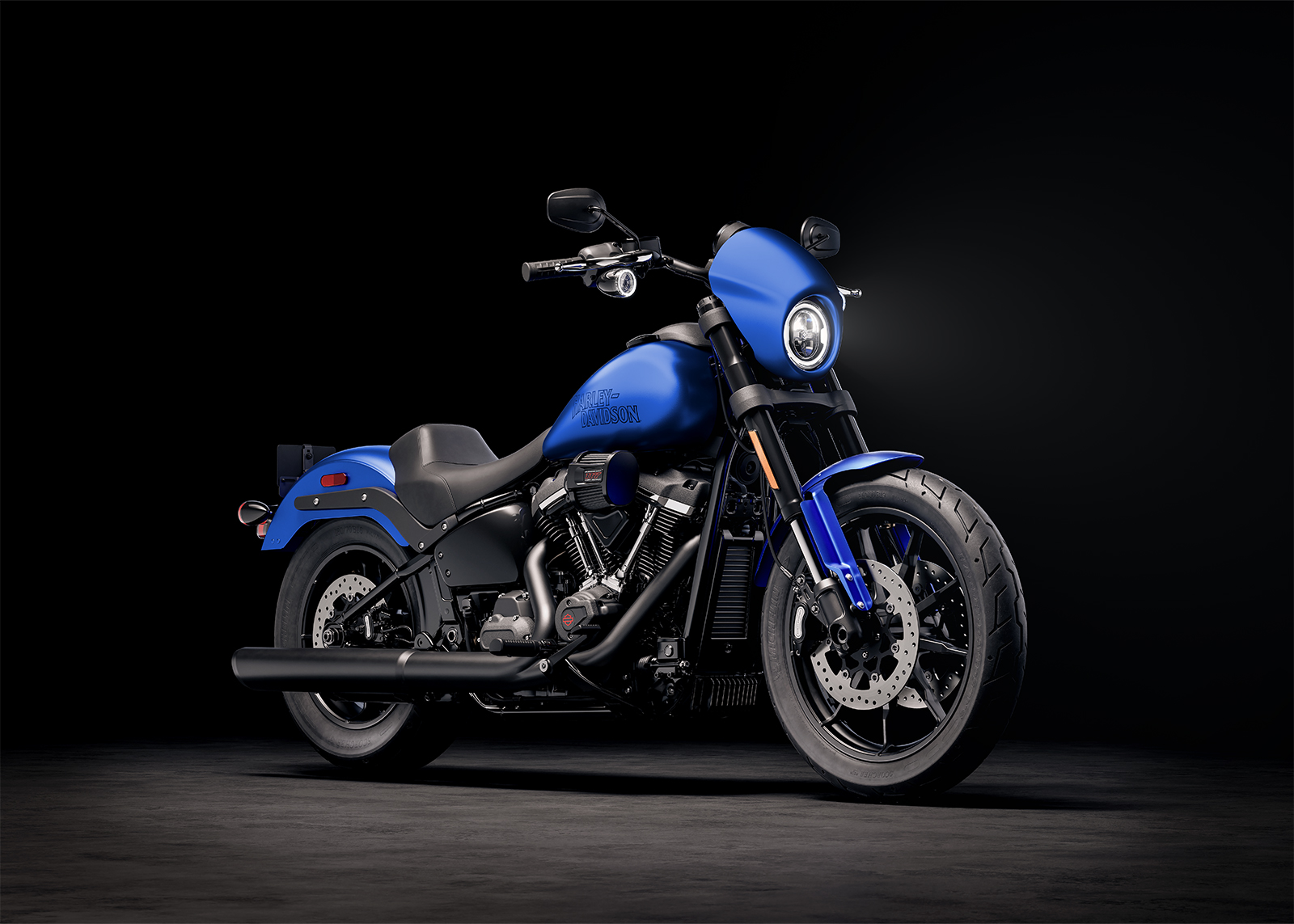

A blacked-out, factory-custom performance cruiser, the Harley-Davidson Low Rider S has West Coast style and Milwaukee muscle.

  • Upright riding position
  • Mid-mount foot controls
  • Screen
  • Rider safety enhancements standard
Detailed Specs
Length
2,365 mm
Seat Height, Unladen
710 mm
Ground Clearance
145 mm
Rake
28
Trail
145 mm
Wheelbase
1,615 mm
Tire, Type
Michelin™ Scorcher 31, front and rear
Tires, Front Specification
110/90B19,62H,BW
Tires, Rear Specification
180/70B16,77H,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, As Shipped
295 kg
Weight, In Running Order
308 kg
Engine 2
Milwaukee-Eight™ 117
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.2:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 offset shotgun; catalyst in muffler
Engine Torque Testing Method
EC 134/2014
Engine Torque 3
168 Nm
Engine Torque (rpm)
3500
Horsepower
105 HP / 78 kW @ 5020 rpm
Lean Angle, Right (deg.)
31.3
Lean Angle, Left (deg.)
31.3
Fuel Economy Testing Method
EU 134/2014
Fuel Economy
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
128 g/km CO2
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Front Fork
Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Rear Shocks
Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Wheels, Front Type 4
Dark bronze, Radiate cast aluminum wheel
Wheels, Rear Type 4
Dark bronze, Radiate cast aluminum wheel
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear black, Split 7-spoke floating rotors

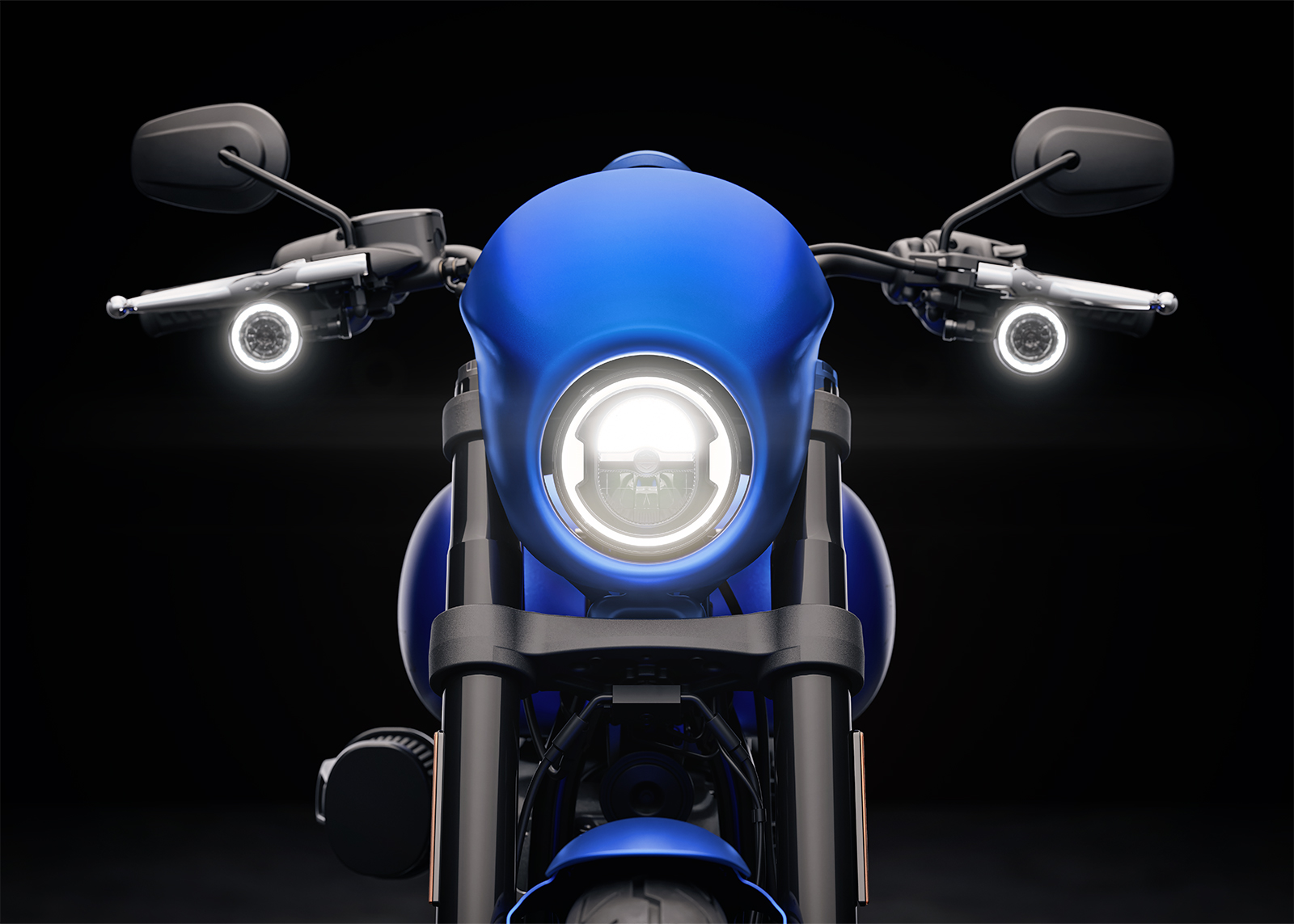

Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
All LED, low beam, high beam and signature position lamp; LED Zeppelin tail lamp; Incandescent bullet turn signals
Gauges
4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
Anti-lock Brake System (ABS)
Included
Traction Control System (TCS)
Included
