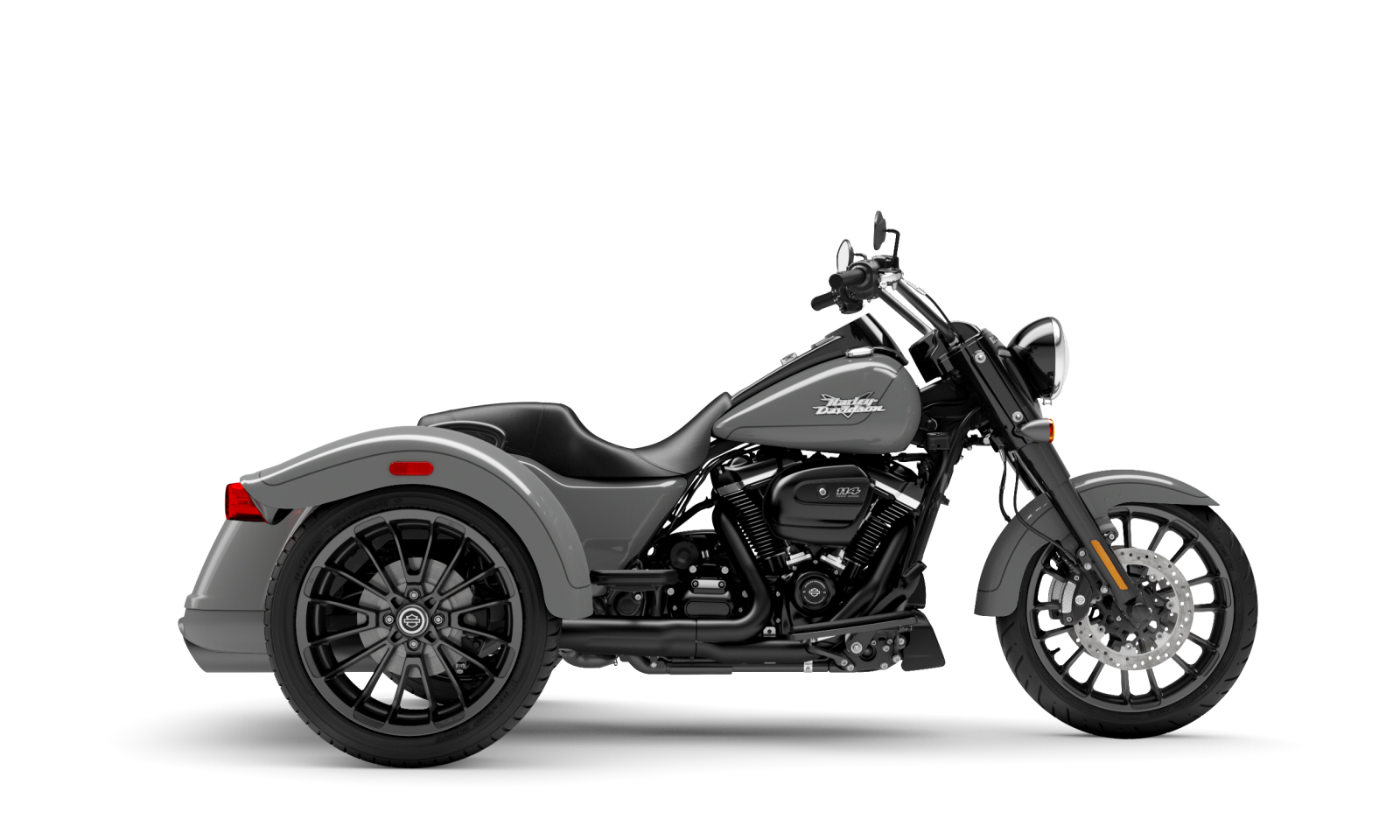

2024 Freewheeler™
360 View

2024 Freewheeler™

Trim:
Colour:
See your local dealer for pricing information.
Test Ride Financing Request a brochure
*Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Key Features

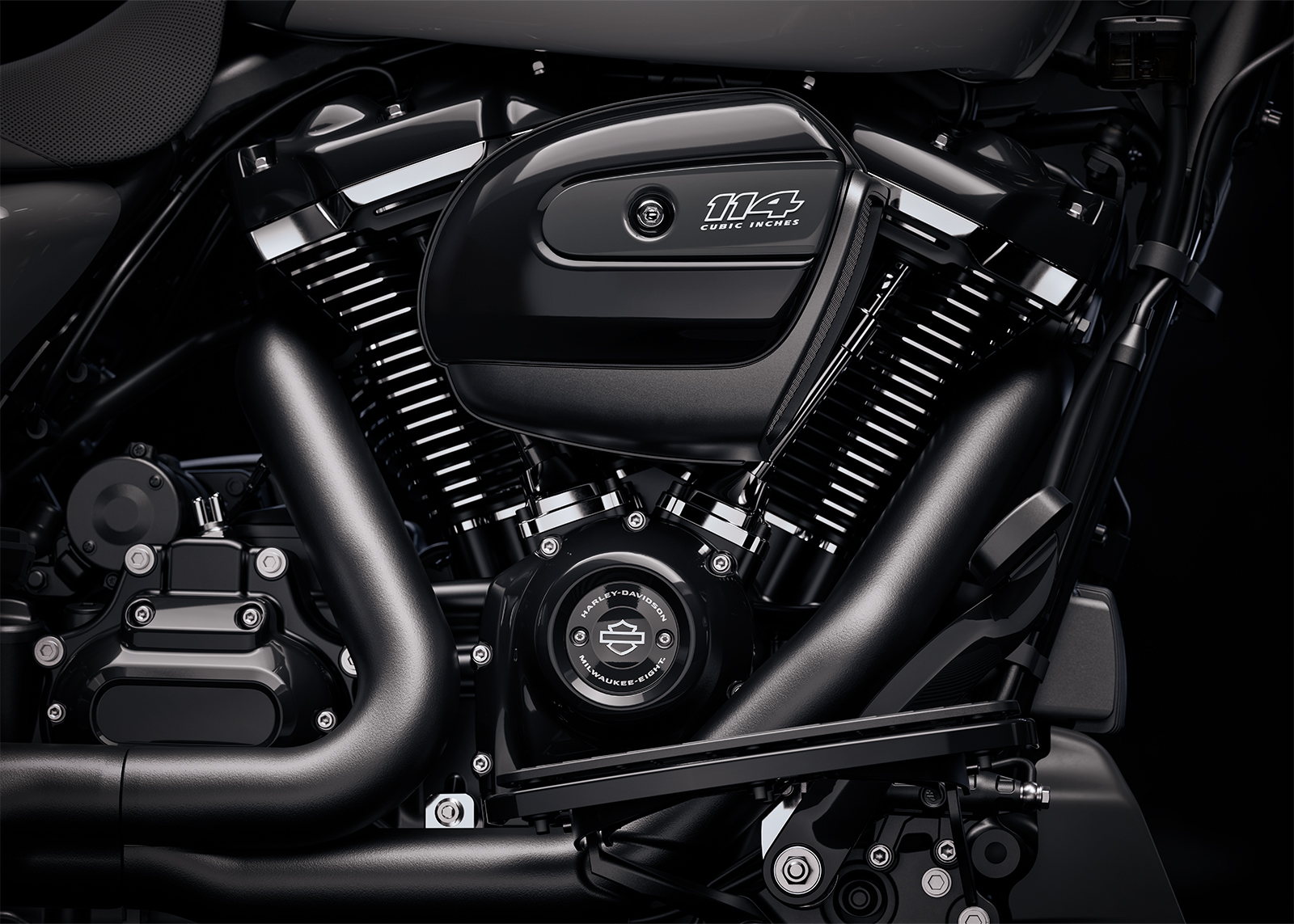

MILWAUKEE-EIGHT™ 114 ENGINE

Loads of torque for on-demand power you can feel with each twist of the throttle, accompanied by that evocative H-D sound.

RIDER SAFETY ENHANCEMENTS

Increase road confidence with trike-specific Rider Safety Enhancements, including Cornering Enhanced Electronic Linked Braking (C-ELB), Cornering Enhanced Antilock Braking System (C-ABS), Cornering Enhanced Traction Control System (C-TCS), and Drag-Torque Slip Control System (DSCS).

THROW IT IN REVERSE

Electric reverse gear makes it easy to move your trike in and out of parking spaces.

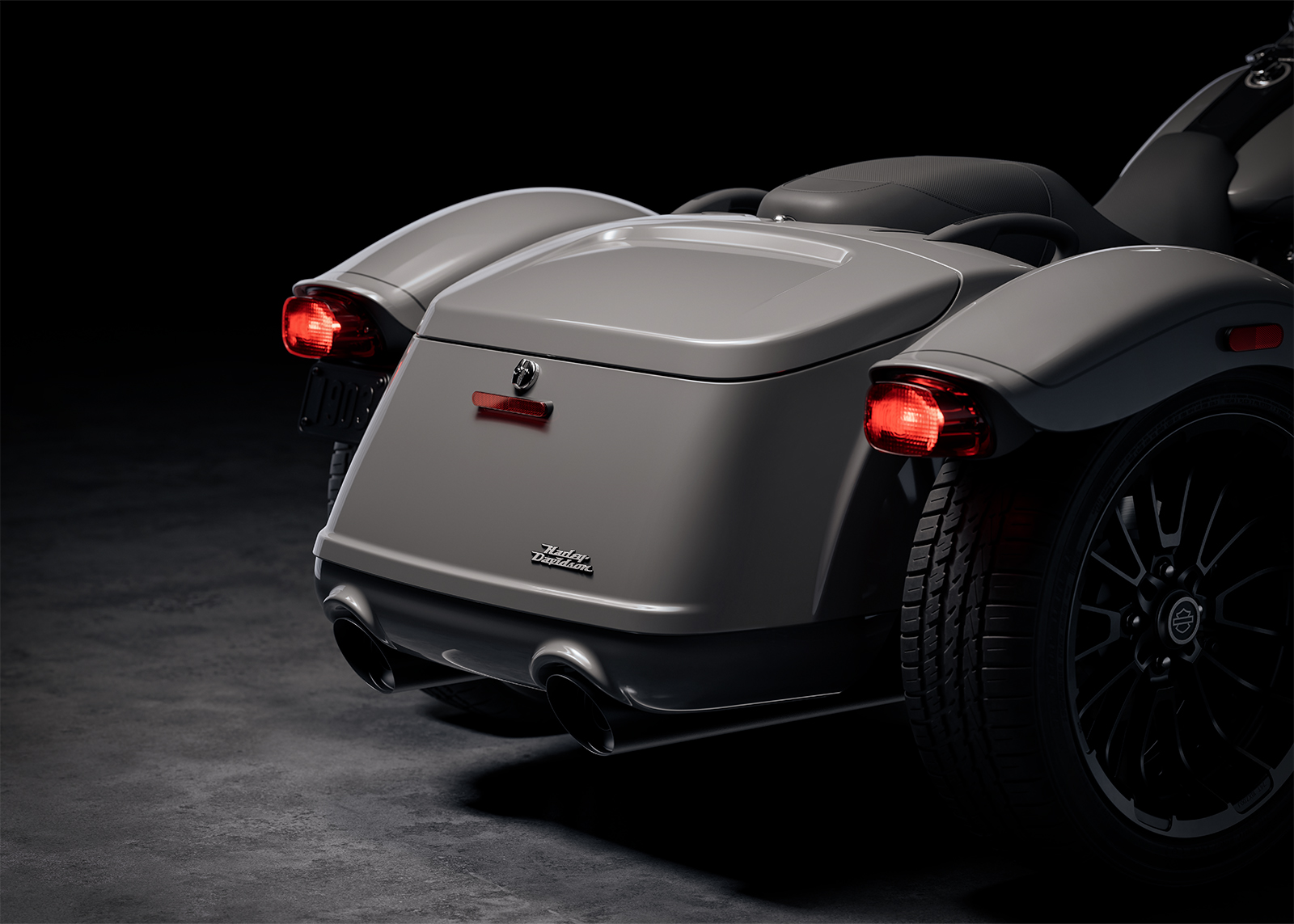

TRUNK SPACE

The weather-proof rear trunk has a top-mounted door for easy loading.

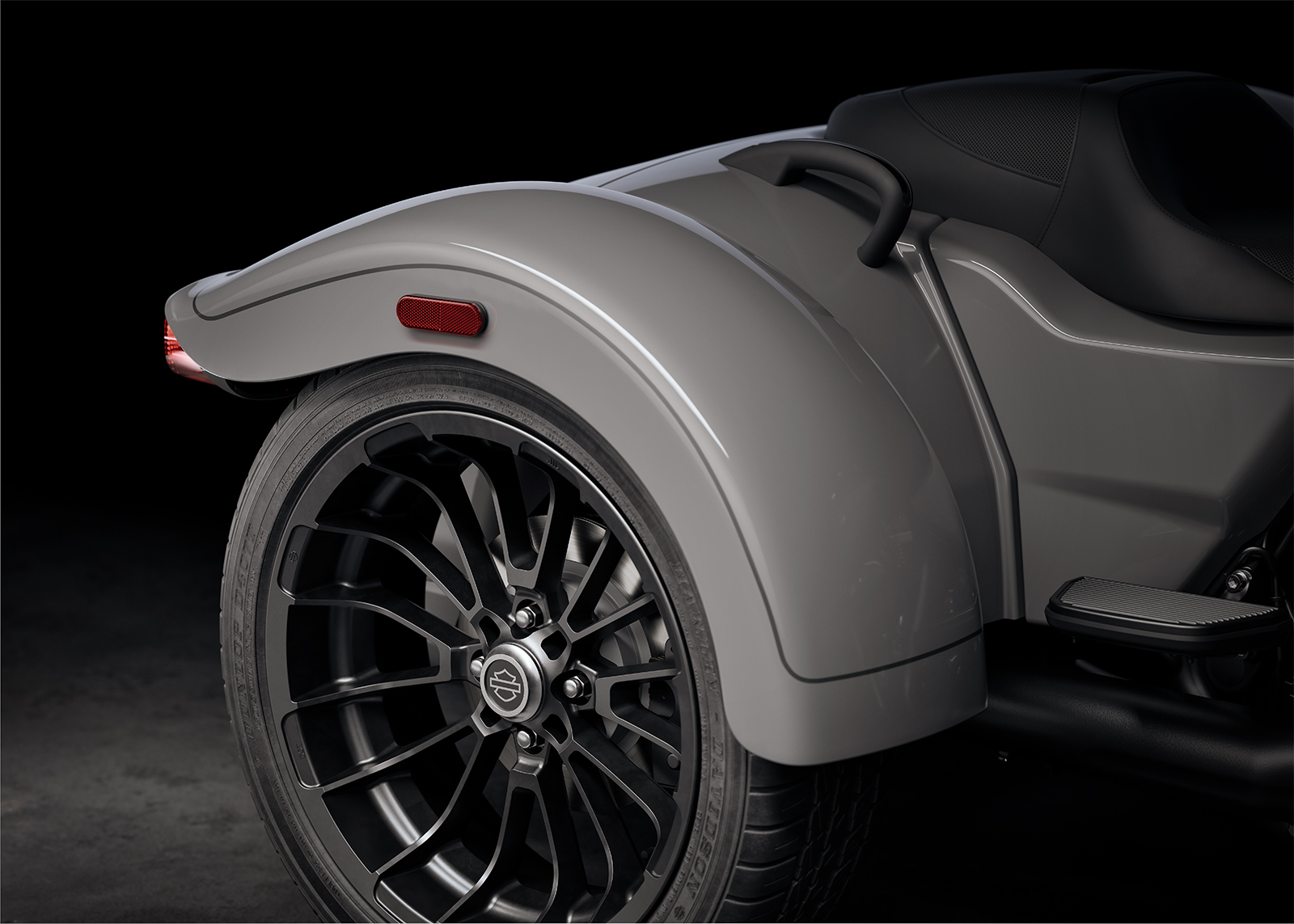

REAR VIEW

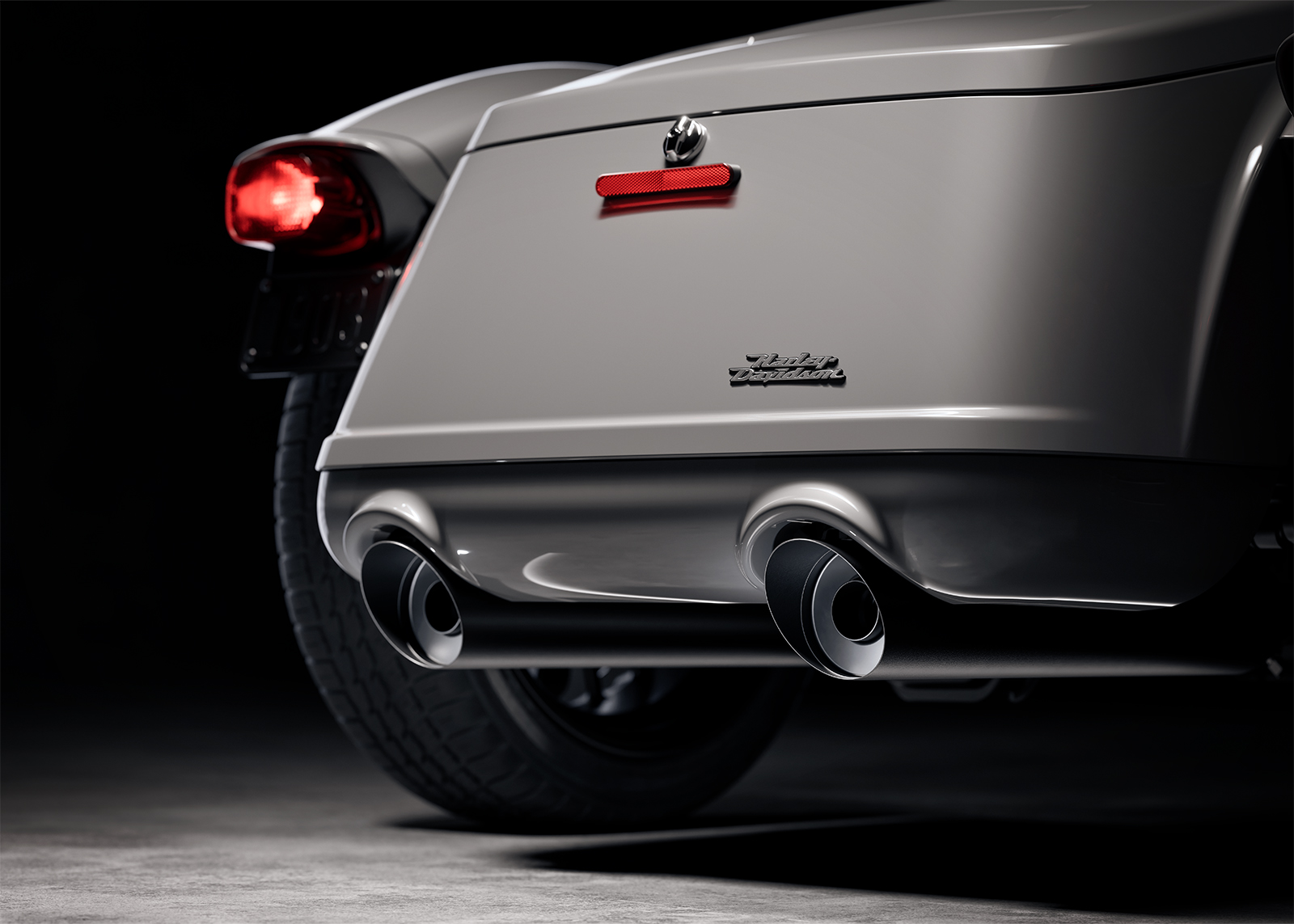

Bobtail rear fenders and slash cut pipes add unabashed personality.

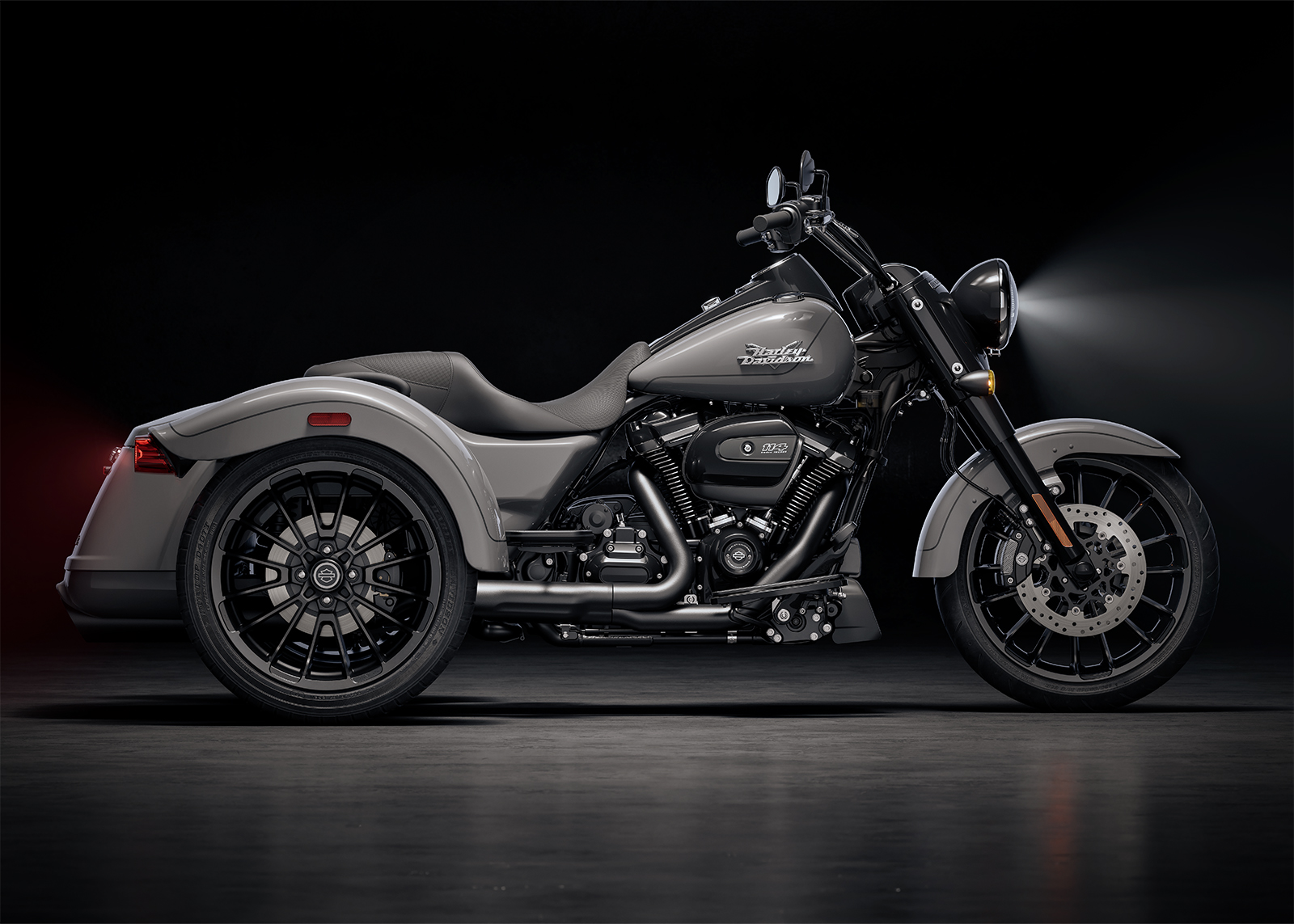

SINISTER STYLING

Blacked-out attitude, from the front end and tank console to the powertrain and exhaust.

CHASSIS

Engineered by Harley-Davidson exclusively for three-wheeled vehicles to optimise handling and performance.

At a glance

The Harley-Davidson Freewheeler delivers aggressive styling, enticing performance, and confident handling on three wheels.

  • Upright riding position
  • Floorboards

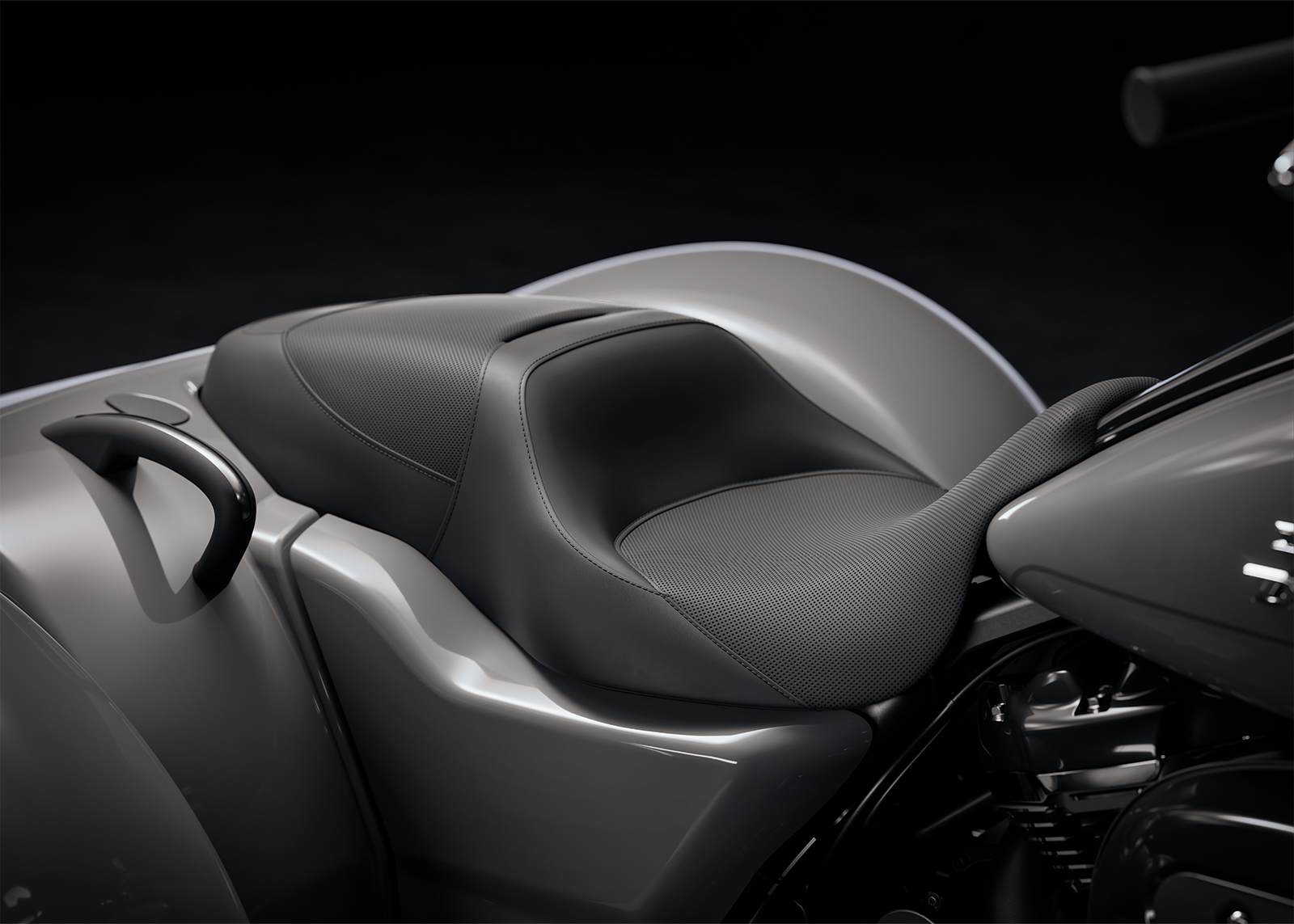

  • Passenger seat
  • Trunk
  • Rider safety enhancements standard
Detailed Specs
Length
2,615 mm
Seat Height, Unladen
700 mm
Ground Clearance
125 mm
Rake
26
Trail
101 mm
Wheelbase
1,670 mm
Tire, Type
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
Tires, Front Specification
MT 130/60B19 M/C 61H
Tires, Rear Specification
P215/45R18 83T
Fuel Capacity
22.7 l
Oil Capacity (w/filter)
4.7 l
Weight, As Shipped
496 kg
Weight, In Running Order
513 kg
Luggage Capacity -Volume
0.06 m3
Engine 2
Milwaukee-Eight™ 114
Bore
102 mm
Stroke
114.3 mm
Displacement
1,868 cc
Compression Ratio
10.5:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
Shorty slash down-style chrome finish mufflers
Engine Torque Testing Method
EC 134/2014
Engine Torque 3
159 Nm
Engine Torque (rpm)
3000
Horsepower
87 HP / 65 kW @ 5020 rpm
Fuel Economy Testing Method
EU 134/2014
Fuel Economy
6.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
151 g/km CO2
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
10.534
Gear Ratios (overall) 2nd
7.302
Gear Ratios (overall) 3rd
5.423
Gear Ratios (overall) 4th
4.392
Gear Ratios (overall) 5th
3.741
Gear Ratios (overall) 6th
3.157

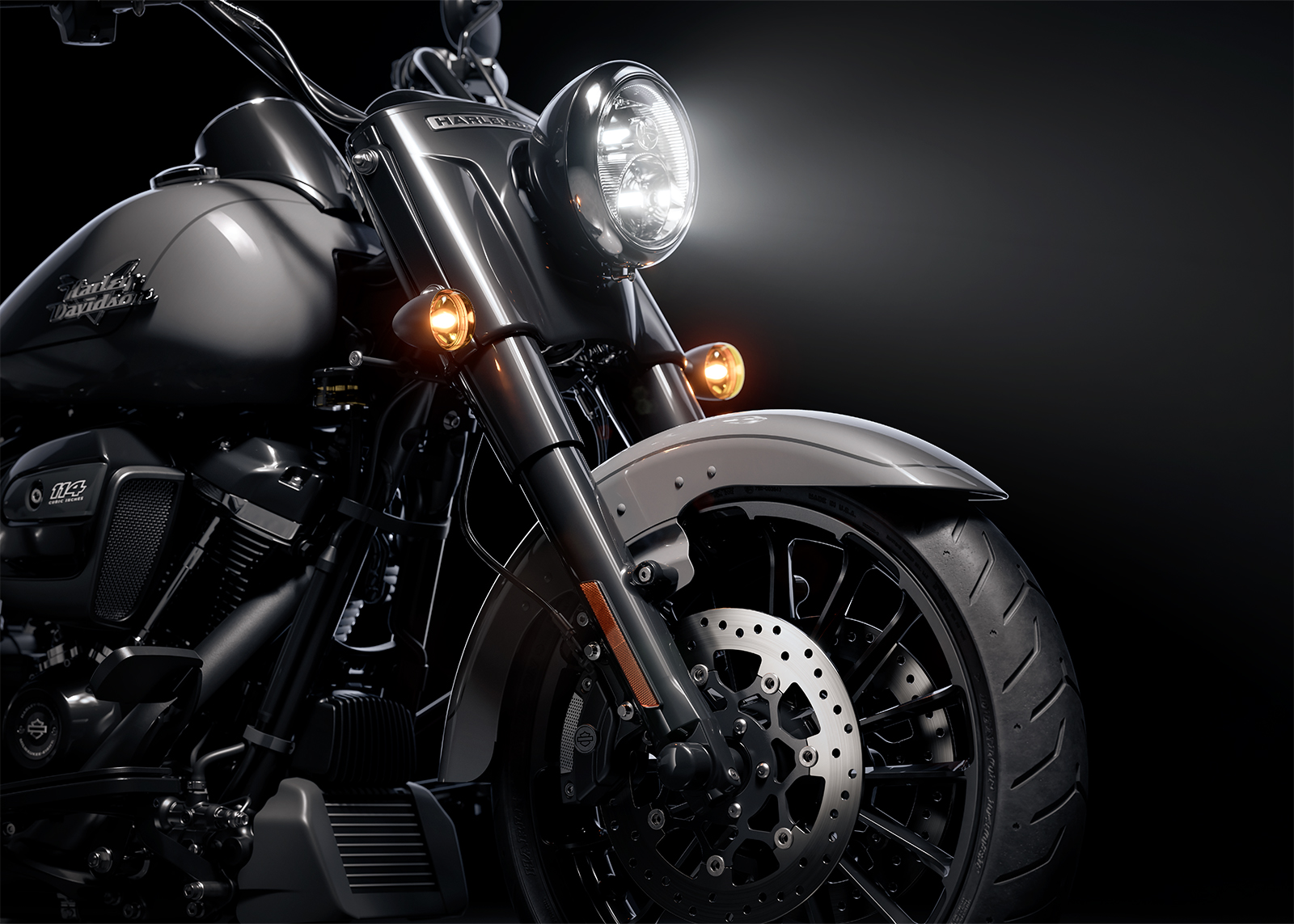

Front Fork
49 mm dual bending valve

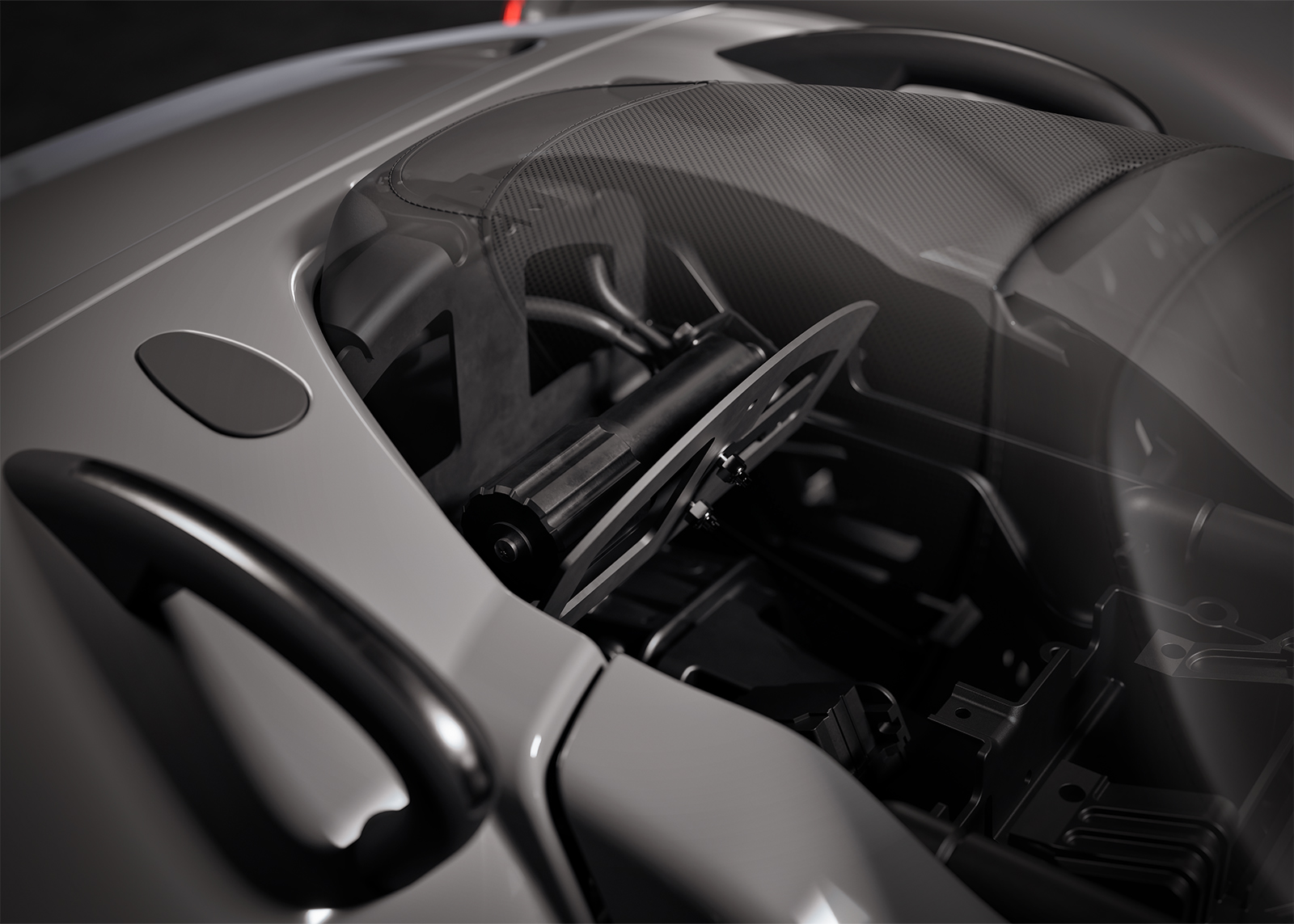

Rear Shocks
Hand-adjustable emulsion rear suspension
Wheels, Front Type 4
Cast aluminum
Wheels, Rear Type 4
Cast aluminum
Brakes, Caliper Type
Front: 32 mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
Brakes, Rotor Type
Dual floating rotors (front), fixed rotor (rear)
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; Incandescent tail/stop, front signal lights and rear turn signals
Gauges
Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
Anti-lock Brake System (ABS)
Included
Electronic Linked Braking (ELB)
Included
Traction Control System (TCS)
Included
Drag-torque Slip Control System (DSCS)
Included
Cornering Enhanced Anti-lock Brake System (C-ABS)
Included
Cornering Enhanced Electronic Linked Braking (C-ELB)
Included
Cornering Enhanced Traction Control System (C-TCS)
Included
