Road Glide™ Limited
Shopping Tools
Key Features
MILWAUKEE-EIGHT® 114 ENGINE
Loads of torque for on-demand power you can feel with each twist of the throttle, accompanied by that evocative H-D sound.
SHARKNOSE FAIRING
The frame-mounted sharknose fairing features triple split-stream vents that reduce helmet buffeting at highway speeds.
PREMIUM TOUR-PAK® LUGGAGE CARRIER
A sleek-yet-spacious Tour-Pak luggage carrier easily houses both rider and passenger helmets as well as extra travel essentials.

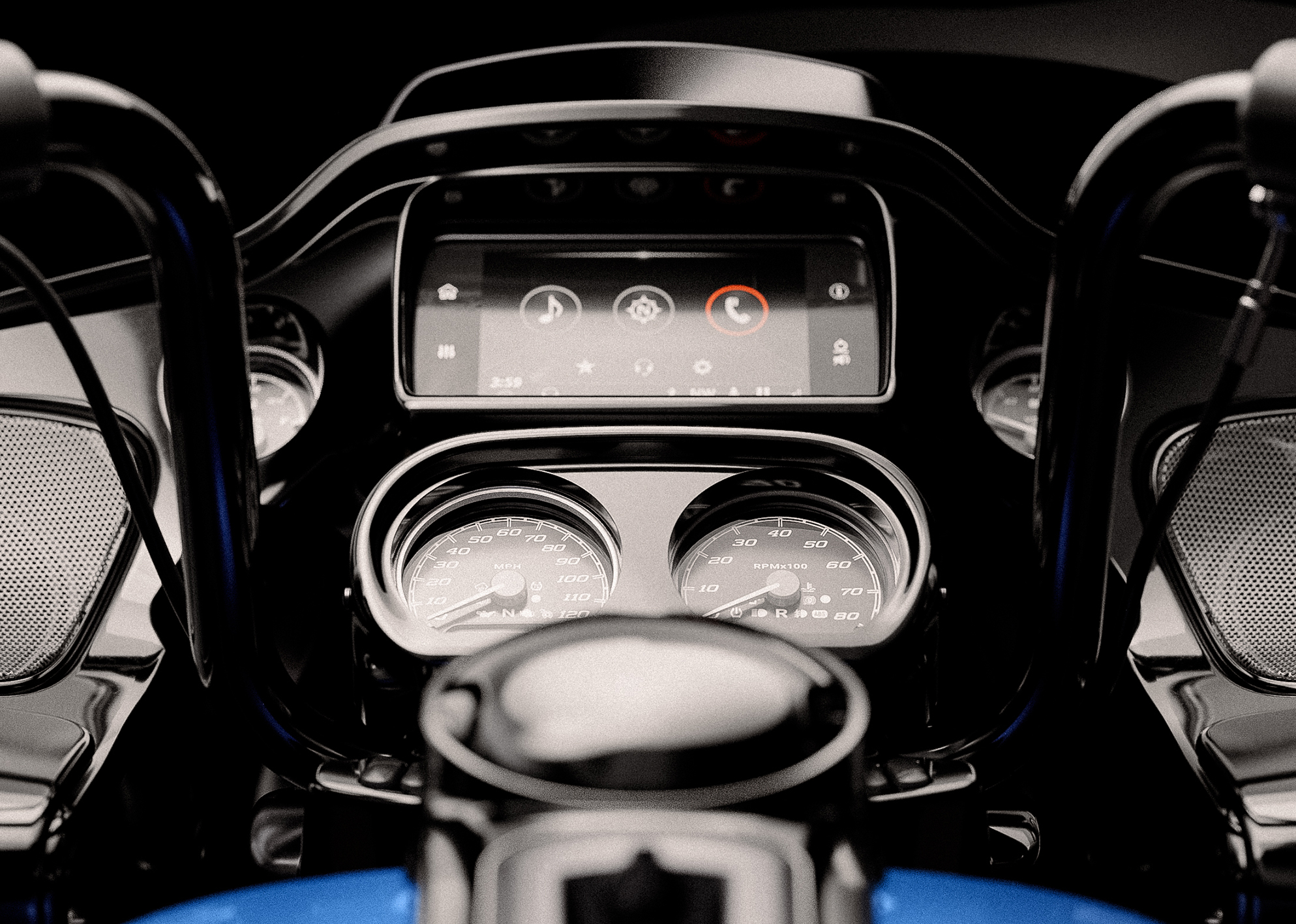

BOOM!™ BOX GTS INFOTAINMENT SYSTEM
An evolved interface experience that offers a contemporary look, feel, and function, with exceptional durability and features designed specifically for motorcycling.
Technical Specifications
Length
2,595 mm
Seat Height, Unladen
735 mm
Ground Clearance
130 mm
Rake
26
Trail
170 mm
Wheelbase
1,625 mm
Tire, Type
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
Tires, Front Specification
BW 130/70B18 63H
Tires, Rear Specification
BW 180/55B18 80H
Fuel Capacity
22.7 l
Oil Capacity (w/filter)
4.7 l
Weight, As Shipped
407 kg
Weight, In Running Order
423 kg
Luggage Capacity -Volume
0.132 m3
Engine
Twin-Cooled™ Milwaukee-Eight™114
Bore
102 mm
Stroke
114.3 mm
Displacement
1,868 cc
Compression Ratio
10.5:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2:1:2 dual exhaust with 4 in. tapered mufflers
Engine Torque Testing Method
EC 134/2014
Engine Torque
160 Nm
Engine Torque (rpm)
3000
Horsepower
87 HP / 65 kW @ 5020 rpm
Lean Angle, Right (deg.)
32
Lean Angle, Left (deg.)
32
Fuel Economy Testing Method
EU 134/2014
Fuel Economy
6.3 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
146 g/km CO2
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.593
Gear Ratios (overall) 2nd
6.65
Gear Ratios (overall) 3rd
4.938
Gear Ratios (overall) 4th
4
Gear Ratios (overall) 5th
3.407
Gear Ratios (overall) 6th
2.875
Front Fork
49 mm Dual Bending Valve
Rear Shocks
Premium standard height hand-adjustable rear suspension
Wheels, Front Type
Slicer II cast aluminum with clear coat
Wheels, Rear Type
Slicer II cast aluminum with clear coat
Brakes, Caliper Type
32 mm, 4-piston fixed front and rear
Brakes, Rotor Type
Dual floating rotors (front), fixed rotor (rear)
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
LED 40-watt, 1,060 lumen low beam, 60-watt, 1,560 lumen high beam; 8W/28W tail/stop, front signal lights; LED rear turn signals
Gauges
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment system
Boom!™ Box GTS
Screen Size
165 mm
Type
Full Color TFT
Watts Per Channel
25
Speakers
4
Speaker Size
5.25 inch standard
Headset Specifications (if equipped)
16-64 ohms
AM
Standard
FM
Standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Standard (Passenger Headset Sold Separately)
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
Standard
Text-to-Speech (TTS) Languages
Phone dependent
USB
USB/MTP/iPod/iPhone
Bluetooth
Phone/Media Supported
Anti-lock Brake System (ABS)
Included
Electronic Linked Braking (ELB)
Included
Vehicle Hold Control (VHC)
Included
Tire Pressure Monitoring System (TPMS)
Included
Cornering Enhanced Anti-lock Brake System (C-ABS)
Included
Cornering Enhanced Electronic Linked Braking (C-ELB)
Included
Cornering Enhanced Traction Control System (C-TCS)
Included
Cornering Drag-Torque Slip Control System (C-DSCS)
Included
